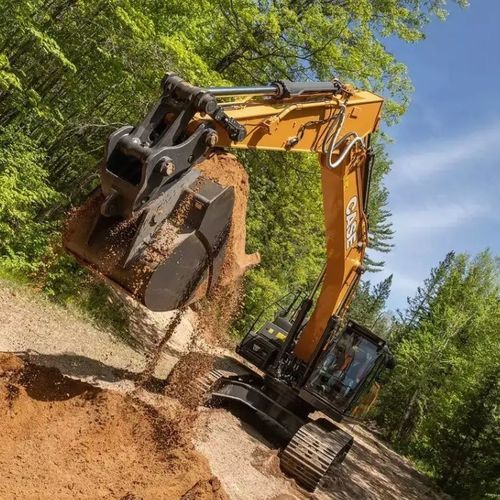

Medium excavator CX300E

crawlerdiesel

Overview
The CX300E is a heavy-duty crawler excavator delivering 259 hp (193.4 kW) and a bucket breakout force of 42,781 lbs. Designed for high-volume earthmoving, deep digging and heavy utility tasks, it combines powerful hydraulics, a responsive FPT engine and integrated machine-control options for precise, productive operation.

Walkaround
Key operational features include fast-response hydraulics for reduced cycle times, semi-automatic digging modes to assist operator consistency, and a 10-in. LCD workstation that provides machine data and supports OEM 2D/3D control systems. The CX300E is configurable for tough sites with undercarriage, protection and lighting options.

Quick specifications

• Power: 259 hp | 193.4 kW
• Operating weight: 67,000 lb | 30,400 kg
• Bucket breakout force: 42,781 lbs.

Standard equipment

• ENGINE
  • FPT NEF6
  • Tier 4 Final / Stage V certified
  • Diesel Oxidation Catalyst (DOC)
  • Six-cylinder turbocharged diesel
  • Air intake heater
  • 1000-hour engine oil/filter interval
  • 24-volt electrical system
• TELEMATICS
  • myCASEConstruction – hardware plus 7-year advanced data subscription for 2-way communication

Optional equipment

• ENGINE
  • High ambient temperature cooling package
• HYDRAULICS
  • Proportionally controlled secondary low-flow auxiliary hydraulics
  • Hose Burst Check Valve (HBCV)
• MACHINE CONTROL
  • Leica iCON iXE2 – 2D system
  • Leica iCON iXE3 – 3D system
• UNDERCARRIAGE
  • 27.6 in (700 mm) steel shoes, triple semi-grouser
  • 23.6 in (600 mm) steel shoes, triple semi-grouser
  • Triple track guides
• OPERATOR ENVIRONMENT
  • FOPS cab top guard – Level 2
  • Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
  • Front rock guard – vertical bars two-piece (OPG 1)
  • Front rock guard – vertical bars one-piece (OPG 2)
  • Max View Monitor – 3 cameras with 270° view
  • LED package: side view camera and 6 LED lights (2 front cab-mounted, 2 rear-mounted, 1 on each side)

Warranty

• Three-year / 3,000-hour full-machine factory warranty
• 7-year advanced myCASEConstruction subscription included

Technical specifications

• Model: CX300E
• Engine: FPT NEF6, six-cylinder turbocharged diesel, Tier 4 Final / Stage V certified
• Power: 259 hp | 193.4 kW
• Operating weight: 67,000 lb | 30,400 kg
• Bucket breakout force: 42,781 lbs.
• Emission control: Diesel Oxidation Catalyst (DOC)
• Electrical system: 24-volt
• Service intervals: 1000-hour engine oil/filter interval
• Telematics: myCASEConstruction with 7-year advanced data subscription (included)
• Available machine control: Leica iCON iXE2 (2D), Leica iCON iXE3 (3D)
• Optional undercarriage shoe sizes: 27.6 in (700 mm) and 23.6 in (600 mm)
• Operator protection options: FOPS Level 2, front grill and rock guards, Max View monitor, LED lighting package
