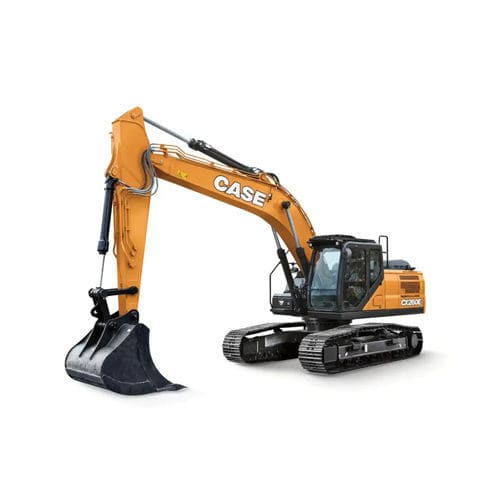

Medium excavator CX260E

crawlerdiesel

Overview
Fast cycle times, heavy truck loading and massive digging power define the CASE CX260E. Designed for high-production earthmoving, utility and site-prep work, this crawler excavator combines a torque-efficient FPT engine, improved hydraulics and integrated telematics to maximise uptime and productivity.

Walkaround
The CX260E delivers nearly 40,000 lb of bucket breakout force and is compatible with 2D and 3D machine-control systems for precise, fast operation. The cab offers operator-focused controls, advanced displays and camera integration for improved visibility and jobsite efficiency.

Quick specifications

• Horsepower: 179 hp | 133.4 kW
• Operating weight: 56,900 lb | 25,800 kg

Standard equipment

• ENGINE
  • FPT NEF6
  • Tier 4 Final / Stage V certified
  • Selective Catalytic Reduction on Filter – SCRoF
  • Six-cylinder turbocharged diesel
  • Air intake heater
  • 1000-hour engine oil/filter interval
  • 24-volt electrical system
• ELECTRICAL SYSTEM
  • Engine control:
    • Dial-type throttle control
    • One-touch idle / auto deceleration / timed engine shutdown
• TELEMATICS
  • myCASEConstruction – hardware included plus 7-year advanced data subscription for two-way communication

Optional equipment

• ENGINE
  • High ambient temperature cooling package
• HYDRAULICS
  • Auxiliary hydraulics:
    • Proportionally controlled secondary low-flow auxiliary hydraulics
  • Hose Burst Check Valve – HBCV
• MACHINE CONTROL
  • Leica iCON iXE2 – 2D system
  • Leica iCON iXE3 – 3D system
• UNDERCARRIAGE
  • 27.6 in (700 mm) steel shoes, triple semi-grouser
  • 23.6 in (600 mm) steel shoes, triple semi-grouser
  • Triple track guides
• OPERATOR ENVIRONMENT
  • FOPS cab top guard – Level 2
  • Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
  • Front rock guard – vertical bars Two piece/OPG 1
  • Front rock guard – vertical bars One piece/OPG 2
  • Max View Monitor – 3 cameras with 270-degree view
  • LED Package: 6 LED lights (2 front cab-mounted, 2 rear-mounted, 1 on each side)

Warranty

• Three-year, 3,000-hour full-machine factory warranty
• 7-year advanced myCASEConstruction subscription

Technical specifications

• Brand: CASE
• Model: CX260E
• Engine: FPT NEF6, six-cylinder turbocharged diesel
• Emission certification: Tier 4 Final / Stage V
• Power: 179 hp | 133.4 kW
• Operating weight: 56,900 lb | 25,800 kg
• Bucket breakout force: nearly 40,000 lb
• Hydraulics: improved performance for high-production environments; optional proportionally controlled secondary low-flow auxiliary hydraulics; Hose Burst Check Valve (HBCV)
• Machine control: compatible with 2D and 3D solutions (Leica iCON iXE2 / iXE3 options)
• Telematics: myCASEConstruction hardware included with a 7-year advanced data subscription
• Electrical: 24-volt system; engine control includes dial throttle control and one-touch idle/auto deceleration/timed shutdown
• Undercarriage options: 700 mm (27.6 in) and 600 mm (23.6 in) steel shoes, triple semi-grouser; triple track guides
• Operator environment: FOPS cab top guard Level 2, multiple rock/grill guard options, Max View Monitor (3 cameras, 270°)
