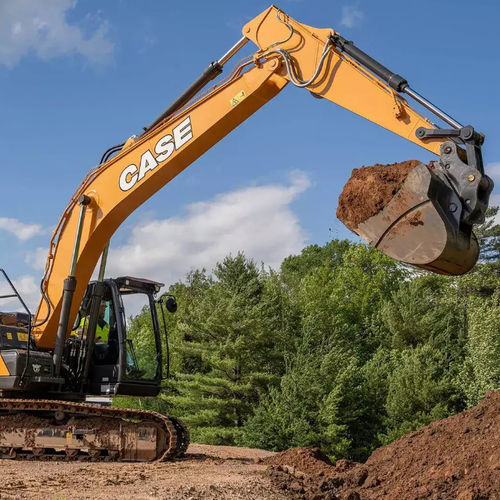

Medium excavator CX190E

crawlerTier 4 - finaldiesel

Overview
The CX190E crawler excavator delivers balanced performance and transportability for a wide range of construction and earthmoving applications. Powered by a four-cylinder turbocharged diesel, it provides 121 hp and a bucket breakout force of 26,500 lb while offering four selectable work modes and CASE Intelligent Hydraulics to match machine response to task requirements.

Quick specifications

• Horsepower: 121 hp | 90.4 kW
• Operating weight: 41,000 lb | 18,600 kg
• Bucket breakout force: 26,500 lb

Walkaround / Operator environment
The cab is spacious and climate-controlled, designed for operator comfort during long shifts. A large LCD monitor with integrated camera display improves visibility and productivity. Controls and the selectable work modes simplify operation across materials and tasks.

Standard equipment
ENGINE

• FPT NEF4 four-cylinder turbocharged diesel
• Tier 4 Final / Stage V certified (SCRoF)
• Air intake heater
• 1000-hour engine oil and filter interval
• 24-volt electrical system

TELEMATICS

• myCASEConstruction hardware with 7-year advanced data subscription (2-way communication)

Optional equipment
ENGINE

• High ambient temperature cooling package

HYDRAULICS

• Auxiliary hydraulics:
  • Proportionally controlled secondary low-flow auxiliary hydraulics
• Hose Burst Check Valve (HBCV)

MACHINE CONTROL

• Leica iCON iXE2 – 2D system
• Leica iCON iXE3 – 3D system

UNDERCARRIAGE

• 23.6 in (600 mm) rubber link chain, bolt-on rubber pads on steel chain
• 23.6 in (600 mm) steel shoes, triple semi-grouser
• 31.5 in (800 mm) steel shoes, triple semi-grouser
• Triple track guides

OPERATOR ENVIRONMENT

• FOPS cab top guard – Level 2
• Front grill guard – 2 x 2 in (50.8 x 50.8 mm) mesh
• Front rock guard – vertical bars (two-piece OPG 1 or one-piece OPG 2)
• Max View Monitor – optional 3-camera 270° view
• LED package: 6 LED lights (2 front cab, 2 rear, 1 each side)

Warranty

• Three-year / 3,000-hour full-machine factory warranty
• 7-year advanced myCASEConstruction subscription included

Technical specifications

• Model: CX190E
• Engine power: 121 hp | 90.4 kW
• Operating weight: 41,000 lb | 18,600 kg
• Bucket breakout force: 26,500 lb
• Work modes: Four selectable work modes to optimize performance by application
• Hydraulics: CASE Intelligent Hydraulics; optional proportionally controlled secondary low-flow auxiliary hydraulics; optional HBCV
• Emission certification: Tier 4 Final / Stage V (SCRoF)
• Telematics: myCASEConstruction with 7-year advanced data subscription (included)
• Cab: Climate control, large LCD monitor with integrated camera display; optional Max View Monitor (3-camera, 270°)
• Warranty: 3 years / 3,000 hours full-machine
