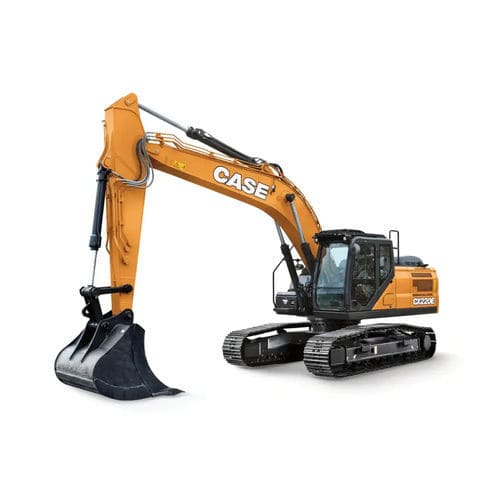

Medium excavator CX220E

crawlerdieselconstruction

Overview
This is what 50,000 lb of power, speed and operator productivity looks like: the CX220E. Designed for jobs from foundation excavation to large highway and infrastructure projects. Features a new engine with improved response, torque and fuel efficiency, more than 34,000 lb of bucket breakout force, and an enhanced operator environment with a large 10-in. LCD providing machine data, performance metrics and multiple camera views.

Walkaround
The CX220E is configured for heavy-duty applications such as foundation digging, utility work and large-scale site preparation. It pairs a powerful 162 hp engine with over 34,000 lb of bucket breakout force for handling tough materials. Smooth hydraulic response and precise controls enable accurate operation in confined or complex job sites. Multiple undercarriage and attachment configurations are available to match specific job requirements.

Quick Specs

• Horsepower: 162 hp | 120.4 kW
• Operating Weight: 50,000 lb | 22,700 kg

Standard Equipment

• ENGINE
  • FPT NEF6
  • Tier 4 Final / Stage V Certified
  • Selective Catalytic Reduction on Filter – SCRoF
  • Six-cylinder turbocharged diesel
  • Air intake heater
  • 1000-hour engine oil/filter interval
  • 24-volt electrical system
• ELECTRICAL SYSTEM
  • Engine control:
    • Dial-type throttle control
    • One-touch idle / Auto deceleration / Timed engine shutdown
• TELEMATICS
  • myCASEConstruction – includes hardware and a 7-year advanced data subscription for two-way communication

Optional Equipment

• ENGINE
  • High ambient temperature cooling package
• HYDRAULICS
  • Auxiliary hydraulics:
    • Proportionally controlled secondary low-flow auxiliary hydraulics
  • Hose Burst Check Valve – HBCV
• MACHINE CONTROL
  • Leica iCON iXE2 – 2D System
  • Leica iCON iXE3 – 3D System
• UNDERCARRIAGE
  • 23.6 in (600 mm) rubber link chain, bolt-on rubber pads on steel chain
  • 27.6 in (700 mm) steel shoes, triple semi-grouser
  • 23.6 in (600 mm) steel shoes, triple semi-grouser
  • Track guides – triple
• OPERATOR ENVIRONMENT
  • FOPS cab top guard – Level 2
  • Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
  • Front rock guard – vertical bars Two piece / OPG 1
  • Front rock guard – vertical bars One piece / OPG 2
  • Max View Monitor – 3 cameras with 270-degree view
  • LED Package: Includes 6 LED Lights – 2 front cab mounted, 2 rear mounted and 1 mounted on each side

Warranty

• Three-year, 3,000-hour full-machine factory warranty
• 7-year advanced myCASEConstruction subscription

Technical Specifications

• Model: CX220E
• Engine: FPT NEF6, six-cylinder turbocharged diesel
• Power: 162 hp | 120.4 kW
• Operating weight: 50,000 lb | 22,700 kg
• Bucket breakout force: Over 34,000 lb
• Emission certification: Tier 4 Final / Stage V
• Aftertreatment: Selective Catalytic Reduction on Filter (SCRoF)
• Electrical system: 24-volt
• Engine service interval: 1000-hour oil/filter
• Operator display: 10-in. LCD screen with machine data and multiple camera views
• Telematics: myCASEConstruction with 7-year advanced data subscription included
• Available undercarriage options: rubber link chain with bolt-on rubber pads, 600 mm and 700 mm steel shoes (triple semi-grouser)
