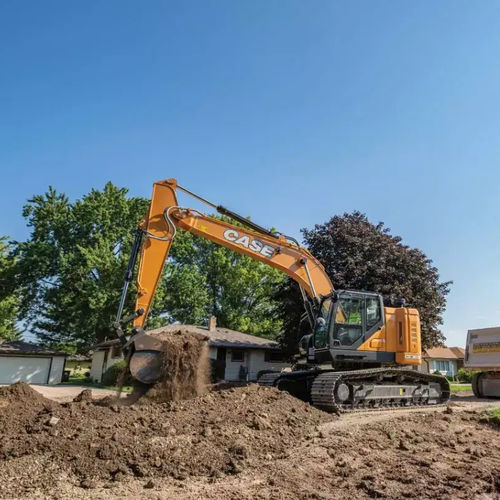

Large excavator CX365E SR

crawlerTier 4 - finaldiesel

Overview
The world doesn’t always give you the space you need. Enter the CASE CX365E SR. This 78,600 lb machine brings heavy earthmoving to tight spaces with a short-radius tailswing design and 43,000 lbs. of bucket breakout force. It is designed for road and bridge projects and heavy civil work in close quarters. The machine offers four working modes to maximize fuel economy, adjustable hydraulic flow control balance to fit applications, a cab with a 10-in. LCD screen, improved HVAC and generous legroom.

Walkaround
When projects demand serious earthmoving in tight spaces (road and bridge work, urban construction, heavy civil jobs), the CX365E SR combines big-machine power with a compact footprint, making it ideal for confined job sites.

Quick specifications

• Horsepower: 205 hp | 153 kW
• Operating weight: 78,600 lb | 35 700 kg
• Bucket breakout force: 43,000 lb
• Short-radius tailswing design
• Four working modes to maximize fuel economy
• Adjustable hydraulic flow control balance
• Cab: 10-in. LCD screen; improved HVAC; increased legroom

Standard equipment

• ENGINE: Isuzu AQ-6HK1X
• Tier 4 Final Certified
• Selective Catalytic Reduction (SCR)
• Diesel Oxidation Catalyst (DOC)
• Cooled Exhaust Gas Recirculation (CEGR)
• EGR Coolers
• Six-cylinder turbo-charged diesel
• Glow-plug pre-heat
• 500-hour engine oil change interval
• 24-volt electrical system
• TELEMATICS: myCASEConstruction – includes hardware and a 7-year advanced data subscription for 2-way communication

Optional equipment

• ENGINE: High ambient temperature cooling package
• HYDRAULICS: Auxiliary hydraulics – proportionally controlled secondary low-flow auxiliary hydraulics
• HYDRAULICS: Hose Burst Check Valve (HBCV)
• MACHINE CONTROL: Leica iCON iXE2 – 2D System
• MACHINE CONTROL: Leica iCON iXE3 – 3D System
• UNDERCARRIAGE: 27.6 in (700 mm) steel shoes, triple semi-grouser
• UNDERCARRIAGE: 33.5 in (850 mm) steel shoes, triple semi-grouser
• OPERATOR ENVIRONMENT: FOPS cab top guard – Level 2
• OPERATOR ENVIRONMENT: Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
• OPERATOR ENVIRONMENT: Front rock guard – vertical bars Two piece/OPG 1
• OPERATOR ENVIRONMENT: Front rock guard – vertical bars One piece/OPG 2
• OPERATOR ENVIRONMENT: Max View Monitor – 3 cameras with 270-degree view
• OPERATOR ENVIRONMENT: LED Package – includes 6 LED lights (2 front cab mounted, 2 rear mounted and 1 mounted on each side)

Warranty

• Three-year, 3,000-hour full-machine factory warranty
• 7-year advanced myCASEConstruction subscription

Technical specifications

• Model: CX365E SR
• Engine model: Isuzu AQ-6HK1X
• Power: 205 hp | 153 kW
• Operating weight: 78,600 lb | 35 700 kg
• Bucket breakout force: 43,000 lb
• Emission certification: Tier 4 Final (SCR, DOC, CEGR, EGR coolers)
• Engine architecture: Six-cylinder turbocharged diesel; glow-plug pre-heat
• Engine maintenance interval: 500-hour oil change interval
• Electrical: 24-volt system
• Design: Short-radius tailswing for confined job sites
• Hydraulics: Adjustable hydraulic flow control balance; optional proportionally controlled secondary low-flow auxiliary hydraulics; HBCV available
• Working modes: Four working modes for fuel economy optimization
• Operator environment: 10-in. LCD info display, improved HVAC, generous legroom, available FOPS cab top guard and rock/grill guards
• Machine control options: Leica iCON iXE2 (2D) and iXE3 (3D)
• Undercarriage options: 700 mm (27.6 in) and 850 mm (33.5 in) steel shoes, triple semi-grouser
• Telematics: myCASEConstruction hardware with 7-year advanced data subscription included
