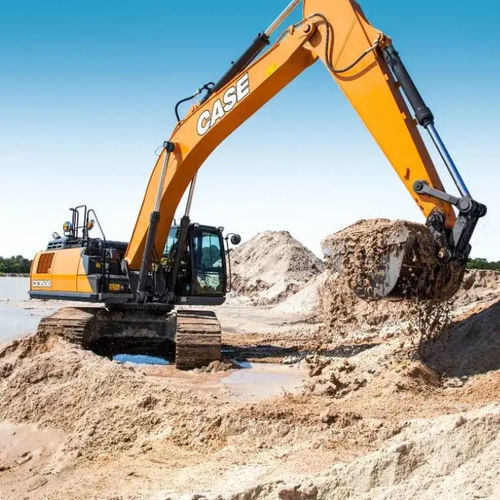

Large excavator CX350DcrawlerTier 4 - intermediateconstruction
Add to favorites
Compare this product
Characteristics
- Size
- large
- Locomotion
- crawler
- Engine type
- Tier 4 - intermediate
- Applications
- construction
- Operating weight
37,414 kg
(82,483.8 lb)- Engine power
200 kW
(271.92 hp)
Description
Overview
Quick facts
Engine
Fuel-saving systems
Hydraulic system
Upper structure
Operator station
Standard equipment
Undercarriage
Compatible attachments
Solutions & support
Brochures
Technical specifications
- CASE CX350D is designed for heavy earthworks and site preparation with Stage V engine compliance and intelligent hydraulic control for smooth, precise operation.
- Suitable applications: mass excavation, trenching, loading, rock work and pipe installation.
Quick facts
- Operating weight: 35.8 t
- Engine power: 210 kW (282 hp)
- Emission standard: Stage V
Engine
- Isuzu 6-cylinder turbocharged diesel (Stage V)
- SCR, DOC, cooled EGR and particulate aftertreatment
- High-pressure common-rail injection and VGT turbocharger
- Extended service intervals and accessible filters
Fuel-saving systems
- Auto idle and one-touch idle
- Auto idle shutdown
- Torque and boom economy controls to reduce consumption
Hydraulic system
- Electronically controlled hydraulic pumps with Auto Power Boost
- Multifunction circuit (hammer/high-flow) with electro-proportional control
- Selectable work modes and overload warning
- Long hydraulic oil service interval (e.g., 5,000 h) and filter intervals
Upper structure
- Service access with lockable panels and toolbox
- Rear and side camera options for improved visibility
- Lift points for counterweight handling
Operator station
- ROPS / FOPS protection (OPG level options) and pressurised cab
- Comfort features: automatic climate control, pneumatic suspended seat, adjustable armrests and sliding console
- Multi-function LED monitor (180 mm) with multiple language options and immobiliser
- Extensive lighting package and DAB+ radio
Standard equipment
- Standard boom and arm configurations (e.g., 6.45 m boom, 3.25 m arm)
- Centralised lubrication and equipment damping valve
- Hydraulic quick-coupler preparation and bucket hitch with safety latch
Undercarriage
- 600 mm triple-grouser steel tracks (options up to 900 mm)
- Sealed & lubricated track links and full hub coverage
- Anchor points and reinforced track guides depending on variant
Compatible attachments
- Hydraulic hammers, rippers, augers, compactors and a range of direct-fit or type-G buckets
Solutions & support
- myCASEConstruction telematics for fleet tracking and maintenance insights
- SiteControl machine control solutions to improve jobsite productivity
- CASE PlusCare maintenance and tailored financing options
Brochures
- CASE Excavators brochure (downloadable)
- Machine Control Solutions – Excavators brochure (downloadable)
Technical specifications
- Model: CX350D
- Operating weight (approx.): 35.8 t
- Rated power: 210 kW (282 hp)
- Engine: Isuzu 6-cylinder turbocharged diesel, Stage V
- Hydraulics: electronically controlled pumps, multifunction circuit, Auto Power Boost
- Maintenance intervals: engine oil 500 h; hydraulic oil 5,000 h; hydraulic filter 2,000 h
