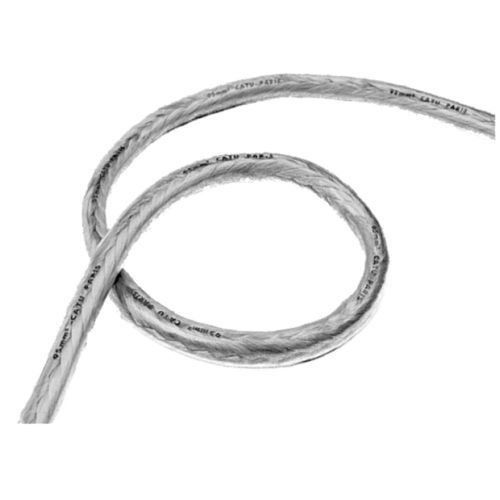

Insulated ground wire M-28 series

Description
Extra-flexible braided aluminium multistrand cable in a transparent vinyl (PVC) sheath, intended for earthing and short-circuiting. Supplied by the meter with a minimum length of 5 m. Operating temperature range: -25°C to +55°C.

Standards
IEC 61138, IEC 61230

Available references (table)
Reference | Dimensions (mm) | Weight (kg) | Enedis Code
M-28-120 | - | - | -
M-28165 | - | - | -
M-28210 | - | - | -
M-2895 | - | - | -
M-28-120-06-C | 6000 x 120 | 2.33 | -
M-28-120-08-C | 8000 x 120 | 3.11 | -
M-28-150-06-C | 6000 x 165 | 3.21 | 3715085
M-28-150-08-C | 8000 x 165 | 4.28 | 3715087
M-28-210-06-C | 6000 x 210 | 4.09 | -
M-28-210-08-C | 8000 x 210 | 5.45 | -
MT-525/70-A-E | 10000 x 70 | 8 | 3715211

Technical characteristics / specifications

• Type: Extra-flexible braided aluminium multistrand cable
• Sheath: Transparent vinyl (PVC) sheath with CATU marking
• Application: Earthing and short-circuiting
• Operating temperature: -25°C to +55°C
• Supply: Sold by the meter (minimum 5 m)
• Standards: IEC 61138, IEC 61230
• Variants: Multiple references with different dimensions and weights as listed above
