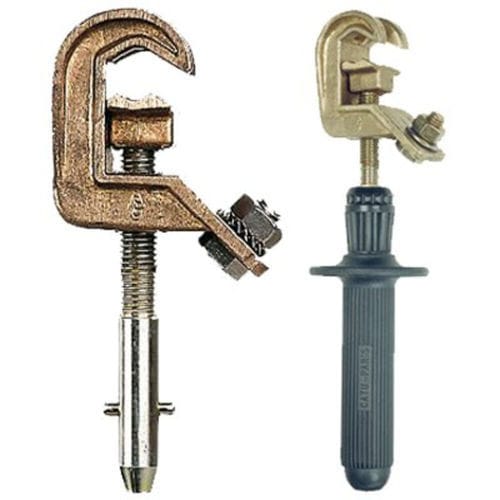

Insulated ground clamp MT-1911 series

phase short circuit

Overview
MALT/CC clamps for fixed points. Short-circuit current rating (Icc): 20 kA for 1 s. Copper or aluminium body; insulating handle available with C end or E end depending on reference.

Standards
IEC 61230

Application

• MALT/CC clamps for fixed points.
• Icc: 20 kA/1 s.

Features

• Body material: copper / aluminium.
• Capacities: fixed point Ø 20 mm and 25 mm depending on reference; round conductors Ø 5–20 mm; flat conductors up to 20 mm.
• Equipped with insulating handle with C end or E end depending on reference.

Technical specifications

• Standard: IEC 61230.
• Short-circuit current (Icc): 20 kA for 1 s.
• Body material: copper / aluminium.
• Capacities: fixed point Ø 20 mm and 25 mm (depends on reference); round conductors Ø 5–20 mm; flat conductors up to 20 mm.
• Insulating handle: available with C end or E end depending on reference.
• Available references and mechanical data (Reference | Dimensions (mm) | Weight (kg)):
  MT-1911 | 300 x 80 x 40 | 0.8
  MT-1911-1 | 300 x 80 x 40 | 0.8
  MT-1911-C | 100 x 80 x 40 | 0.6
  MT-1911-E | 100 x 80 x 40 | 0.6
  MT-1911-E1 | 100 x 80 x 40 | 0.6
