Set grounding device MT-8602

Product

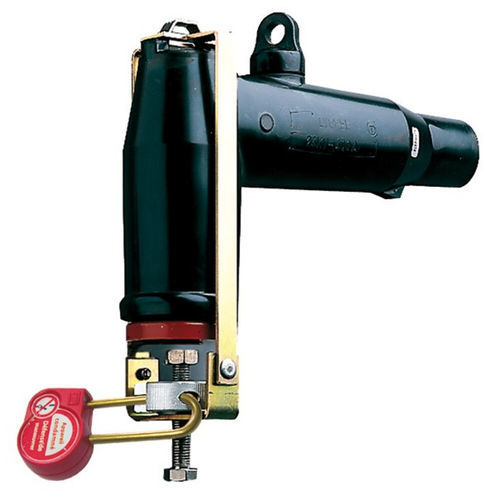

Earthing and locking device MT-8602 for square separable connectors used on HV/MV transformer installations. Supplied as a complete kit in a plastic storage box.

Application
Designed as a rest and lockout device for 400 A square separable connectors on high-voltage transformers according to ENEDIS designation CSE-400-B-24.

Features / Composition

• Tamper‑proof system with non‑removable fusible screw heads.
• Three insulating studs in composite resin, each equipped with a locking device.
• Three padlocks: AL230555S.
• Plastic storage and transport box included.

Table
Reference | Dimensions (mm) | Weight (kg) | Enedis Code
MT-8602 | 370 x 270 x 130 | 5.8 | 3715287

Technical specifications

• Reference: MT-8602
• Dimensions (mm): 370 x 270 x 130
• Weight: 5.8 kg
• Enedis Code: 3715287
• Intended use: rest and lockout device for 400 A square separable connectors (ENEDIS CSE-400-B-24)
• Tamper-proof: non-removable fusible screw heads
• Insulating studs: 3 composite resin studs with locking device
• Padlocks supplied: 3 × AL230555S
• Packaging: 1 plastic box for storage and transport
