Insulated ground wire M-24 series

Overview

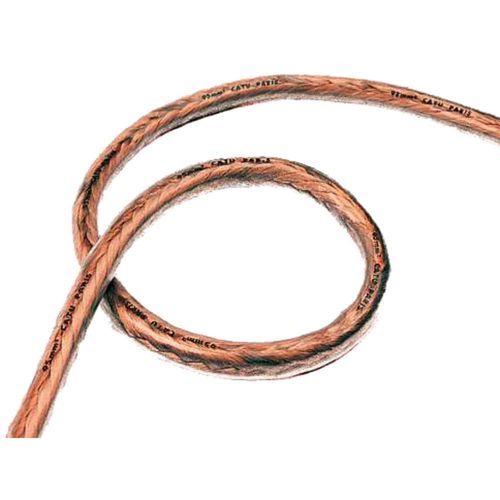

Copper conductor under a PVC vinyl sheath intended for grounding and short-circuit applications (PAT/CC).

Use

• Cable for grounding and short-circuiting.

Standards
IEC 61230

Features

• Conductor: copper with extra-flexible PVC insulating sheath (ST11).
• Translucent insulating sheath.
• Minimum bending radius: 4 × cable diameter.
• Operating temperature range: -40°C to +60°C.
• Normative marking every 500 mm.
• Supplied in minimum lengths of 5 m.

Available references
Reference | Construction | Mass (kg) | Enedis code
M-24-16 | Copper cable 16 mm², PVC sheath, Icc 4.5 kA/1 s | 0.18 /m | 3715104
M-24-25 | Copper cable 25 mm², PVC sheath, Icc 7 kA/1 s | 0.28 /m | 3715105
M-24-35 | Copper cable 35 mm², PVC sheath, Icc 10 kA/1 s | 0.38 /m | 3715106
M-24-50 | Copper cable 50 mm², PVC sheath, Icc 14 kA/1 s | 0.53 /m | 3715104
M-24-70 | Copper cable 70 mm², PVC sheath, Icc 20 kA/1 s | 0.78 /m | 3715107
M-24-95 | Copper cable 95 mm², PVC sheath, Icc 27 kA/1 s | 1.00 /m | 3715102
M-24-120 | Copper cable 120 mm², PVC sheath, Icc 34 kA/1 s | 1.30 /m | 3715104
M-24-150 | Copper cable 150 mm², PVC sheath, Icc 42.5 kA/1 s | 1.54 /m | 3715104

Technical specifications

• Conductor: copper.
• Sheath: PVC grade ST11, extra-flexible, translucent.
• Operating temperature: -40°C to +60°C.
• Minimum bending radius: 4 × cable diameter.
• Marking: normative interval every 500 mm.
• Delivery length: supplied in minimum 5 m lengths.
• Applicable standard: IEC 61230.
