Ground clamp MT-815 series

Overview

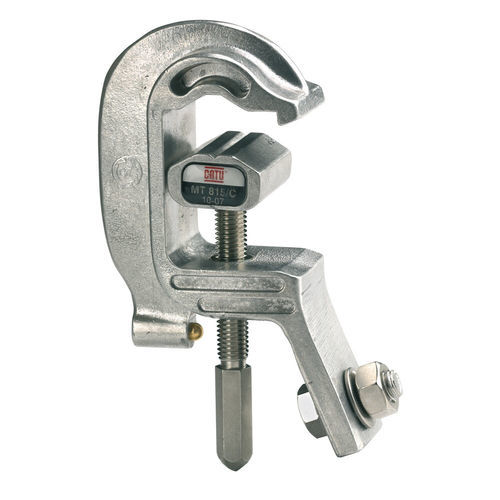

Earthing and short-circuit clamp for mounting on round and flat conductors. Reference MT-815-. Rated short-circuit current Icc 30 kA for 1 s.

Standards
IEC 61230

Applications

• Clamp for earthing and short-circuiting (MALT/CC) on round and flat conductors.
• Designed for use during HV operations and maintenance where temporary earthing/shorting is required.

Features

• Gripping capacity: round conductors Ø 5–35 mm.
• Flat conductors: thickness 5–16 mm, width up to 40 mm.
• Connection provision for cable lug (cosse).
• Material: light alloy.
• Short-circuit rating: Icc 30 kA for 1 s.

Variants / Table
Reference | Dimensions (mm) | Weight (kg) | Codet Enedis
MT-815-S | - | - | -
MT-815-S1 | - | - | -
MT-815-C | 180 x 120 x 45 | 0.6 | 3715042
MT-815-E | 180 x 120 x 45 | 0.6 | -

Technical specifications

• Type: clamp for earthing and short-circuit (MALT/CC).
• Short-circuit current (Icc): 30 kA for 1 s.
• Gripping capacity for rounds: Ø 5–35 mm.
• Gripping capacity for flats: thickness 5–16 mm, width up to 40 mm.
• Connection: range provided for cable lug (cosse).
• Material: light alloy.
• Applicable standard: IEC 61230.
• Dimensions (MT-815-C / MT-815-E): 180 x 120 x 45 mm.
• Mass (MT-815-C / MT-815-E): 0.6 kg.
