Phase short circuit grounding device MT-40 series

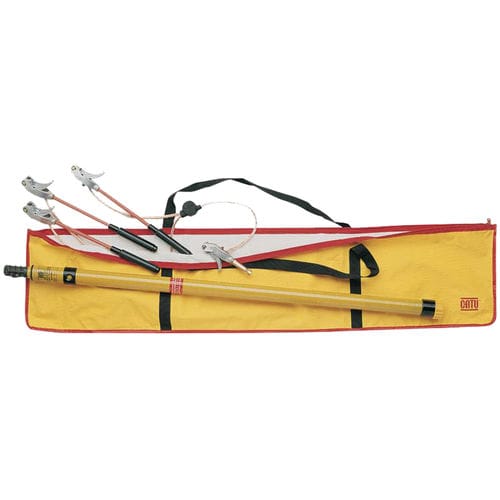

Earthing and short-circuiting equipment Application: Earthing and short-circuiting equipment for low voltage overhead network. Icc: 3 kA/1s. In accordance with IEC 61230 standard. Composition: 4, 5, 6 or 7 clamps for conductors: 1 x MT-411-C and 3, 4, 5 or 6 x MT-411/1 following the reference. 1 earthing and short-circuiting linking assembly in extra flexible insulated copper cable with a cross-section of 16 mm². 1 socket lockable by bayonet for connection to the earthing system of the MT-240 series. 1 telescopic stick of 2 m CE221C. 1 storage and carrying bag MT-40-001.
