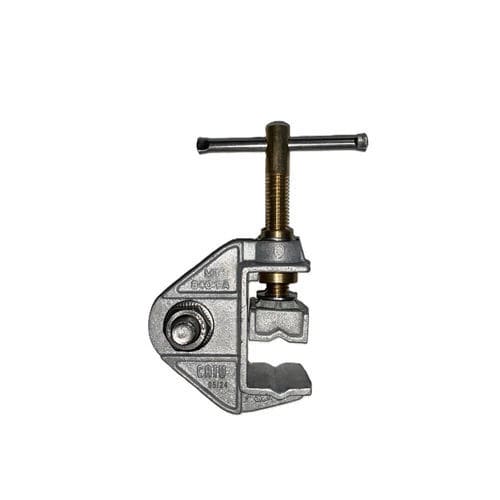

Ground clamp MT-840/1-A

Ground clamp - MT-840/1-A - CATU
Ground clamp - MT-840/1-A - CATU
Add to favorites
Compare this product
Go to the CATU website for more information

Description

Product
Earth clamp MT-840/1-A for earthing connections.

Application
  • Earthing clamp for conductor connection using screw fixation and terminal lug.


Features
  • Clamping capacity: round conductors 6–25 mm; flat conductors 0–30 mm.
  • Body material: aluminium; contact material: copper-aluminium.
  • ICC (impulse withstand current): 17.5 kA / 1 s.
  • Weight: 0.35 kg.
  • Tested according to IEC 61230.


Standards
IEC 61230

Table - Technical data
Reference: MT-840/1-A
Weight (kg): 0.35
Enedis Code: 3715035

Technical specifications
  • Reference: MT-840/1-A
  • Weight: 0.35 kg
  • Clamping capacity: round 6–25 mm; flat 0–30 mm
  • Body material: aluminium
  • Contact material: copper-aluminium
  • ICC: 17.5 kA / 1 s
  • Standard: IEC 61230
  • Enedis Code: 3715035
