Phase short circuit grounding device MT-4804-P

set

Overview
Portable earthing and short-circuiting equipment for medium-voltage applications. Rated short-circuit withstand Icc: 10 kA / 1 s.

Standards
IEC 61230

Application

• Portable earthing and short-circuiting kit with swivel clamps for use during MV maintenance and switching operations.
• Icc: 10 kA / 1 s.

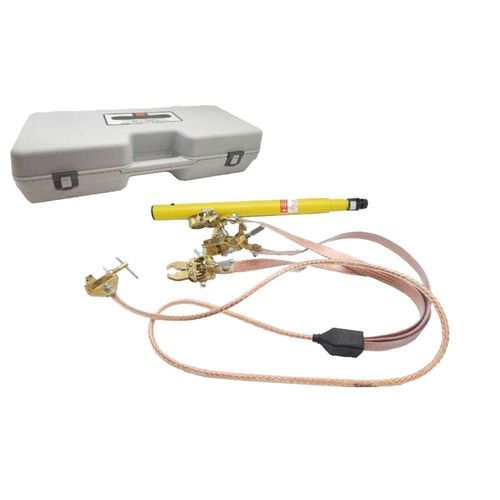

Composition

• 3 MT8142 swivel clamps MT-814/2 with 12 mm type C hexagonal tip for flat surfaces.
• 1 earth vice MT-840/1.
• 1 set of extra-flexible PVC insulated copper cables: 3 × 0.75 m, 35 mm² and 1 × 2.5 m, 16 mm².
• 1 pole with female 12 mm hexagonal tip on flat (MT-830P).
• 1 plastic carrying case.

Documents available
Data sheet and user guides are available for this product.

Technical specifications

• Reference: MT-4804-P
• Dimensions (mm): 720 x 300 x 175
• Weight (kg): 10
• Icc (short-circuit current): 10 kA / 1 s
• Standards: IEC 61230
