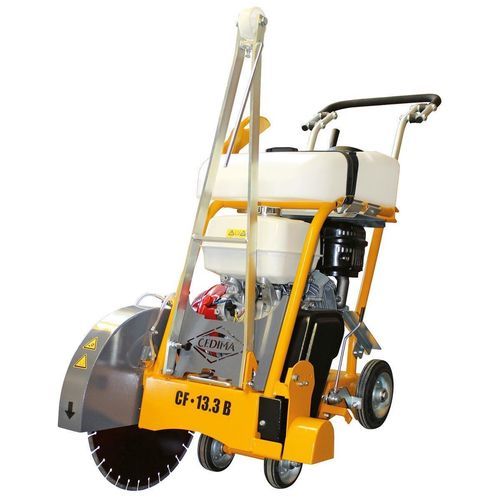

Concrete cutter CF-13.3 B

Short description
Flexible joint cutter suitable for light pavement repairs and landscaping. Cutting depth is set by handwheel and spoil removal is handled by a low-maintenance rocker. The operator handle is rubber-mounted to reduce vibration. Compact dimensions and simple operation make the machine well suited for rental fleets.

Functions & features

• Reliable Honda petrol engine with cyclone air filter
• Quick, easy change of blade side
• Stepless cutting-depth adjustment via hand crank
• Adjustable cutting-depth indicator and parking brake
• Height-adjustable, vibration-damped push handle
• Retractable transport handle and lifting eye

Technical data

• Max. cutting depth: 175 mm
• Max. blade Ø: 450 mm
• Min. blade Ø: 300 mm
• Blade bore: 25.4 mm
• Blade mounting side: right or left
• Max. clamping width: 13 mm
• Max. engine power: 8.7 kW / 11.8 HP
• Net engine power: 8.7 kW
• Engine type: petrol
• Engine model: Honda GX-390
• Engine start: recoil start
• Cutting-depth actuation: handwheel
• Feed: manual
• Water tank capacity: 23 l
• Dimensions L/W/H (transport): 820 / 520 / 870 mm
• Weight: 104 kg

Model / Technical specifications

• Model: CF-13.3 B
• Maximum cutting depth: 175 mm
• Blade diameter (max/min): 450 mm / 300 mm
• Blade bore: 25.4 mm
• Blade mounting side: right or left
• Maximum clamping width: 13 mm
• Engine power: 8.7 kW (11.8 HP)
• Engine: Honda GX-390, petrol, recoil start
• Cutting-depth adjustment: stepless via hand crank
• Feed: manual
• Water tank volume: 23 l
• Transport dimensions: 820 x 520 x 870 mm
• Weight: 104 kg
