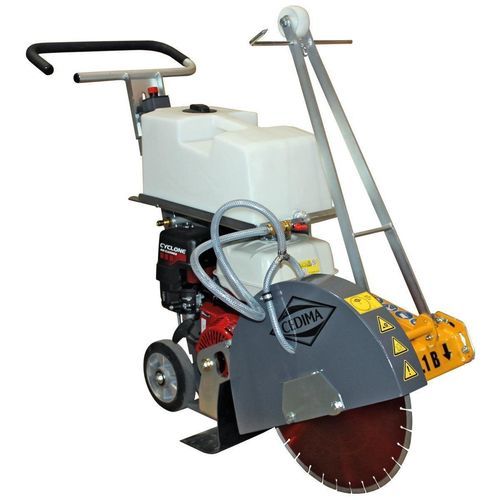

Concrete cutter CF-1020.1 B

Product description
The CF-1020.1 B floor saw delivers a maximum cutting depth of 200 mm and is designed for renovation work, light landscaping and road construction. Its compact, transport-friendly dimensions and low-mounted drive motor lower the machine's centre of gravity, increasing stability. The swivel arm design keeps the motor in its low position when the blade is raised, ensuring high tilt resistance and straightforward, controlled cutting.

Features & Characteristics

• Powerful Honda petrol engine with cyclone air filter and oil shortage switch
• High tilt resistance due to low centre of gravity and maximum track width
• Constant cutting shaft pressure at all cutting depths thanks to the swivel arm principle
• 22 litre water tank with large filling opening
• Water tank can be swivelled sideways to fill the machine with fuel
• Crane eye for lifting and handling

Technical specifications

• Max. cutting depth: 200 mm
• Max. saw blade Ø: 500 mm
• Min. saw blade Ø: 350 mm
• Bore hole of blade: 25.4 mm
• Blade mounting: right or left
• Max. mounting width: 20 mm
• Max. motor output: 8.7 kW / 11.8 hp
• Net motor output: 8.7 kW
• Motor type: Petrol
• Motor designation: Honda GX-390
• Motor starter: Reversing start
• Cutting depth adjustment: Handwheel
• Feed: Manual
• Water tank content: 22 l
• Dimensions L/W/H (transport): 1290 / 570 / 1050 mm
• Weight: 121 kg
