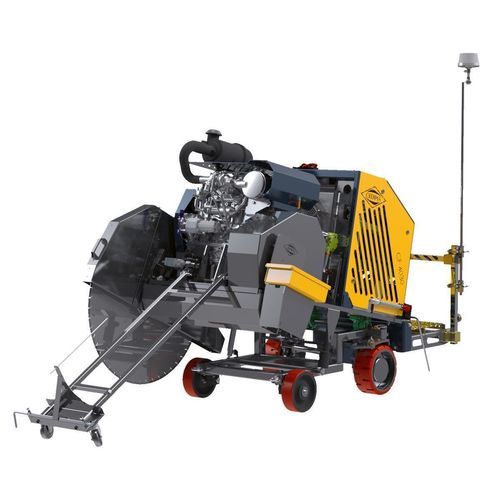

Concrete cutter CF-4030 D

Overview
Heavy-duty floor saw designed for confined and winding construction sites as well as continuous high-output operation. Fitted with a high-performance Stage 5 turbocharged diesel engine with intercooling, water-cooled exhaust gas recirculation and exhaust aftertreatment to meet current emissions requirements. Supplied as a pedestrian machine as standard; operator pedal with adjustable seat available as an accessory.

Features & Characteristics

• Supplied with blade guard 1000 mm
• Water pump with flow through the cutting shaft
• Compliant with Stage 5 emissions standard
• Electrical cutting depth measurement
• Hydraulic steering
• Fail-safe parking brake

Accessories

• Step and adjustable seat
• LED worklight with magnetic holder

Technical specifications

• Max. cutting depth: 410 mm
• Max. saw blade Ø: 1000 mm
• Min. saw blade Ø: 600 mm
• Cutting shaft speed: variable
• Blade bore: 35 mm + 6 holes
• Blade mounting: right or left
• Max. mounting width: 20 mm
• Max. motor output: 45 kW / 61.2 hp
• Net motor output: 45 kW
• Motor type: Diesel
• Motor designation: Doosan D18
• Motor starter: Electric start
• Cutting depth adjustment: Electro-hydraulic
• Feed: Hydraulic
• Water pump: Yes
• Dimensions L/W/H (transport): 1625 / 1275 / 1295 mm
• Weight: 980 kg
