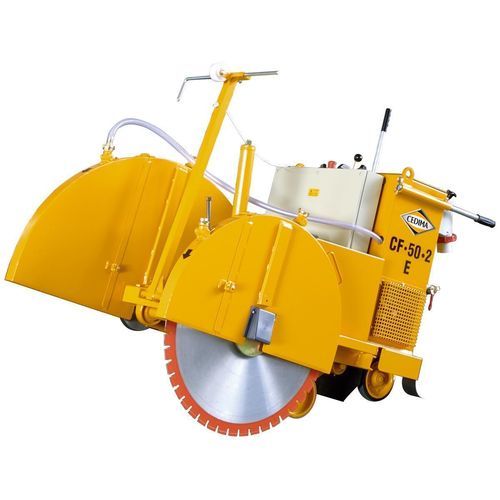

Concrete cutter CF-50.2 E

Product description
The all-electric floor saw CF-50.2 E is designed for longitudinal and deep cuts in asphalt and concrete with a maximum cutting depth of 500 mm. The machine can be configured to operate at 15 or 22 kW depending on the electrical supply. A hydrostatic feed driven by a separate electric motor ensures uniform advance during cutting. Cutting depth infeed and saw blade excavation are performed electro-hydraulically. The CF-50.2 E is supplied with two blade carriers for diamond blades Ø 800 mm and Ø 1200 mm and allows blade mounting on either side.

Features & Characteristics

• Blade mounting possible on the right or left side
• Quick and easy cutting side change
• Supplied as standard with 2 blade carriers (800 / 1200 mm)
• Uniform feed thanks to hydrostatic drive
• Electrical connection switchable between 32 A and 63 A (15 and 22 kW)
• Cutting depth infeed and blade excavation electro-hydraulically

Technical specifications

• Max. cutting depth: 500 mm
• Max. saw blade Ø: 1200 mm
• Min. saw blade Ø: 800 mm
• Bore hole of blade: 35 mm
• Blade mounting: right or left
• Max. mounting width: 5 mm
• Max. motor output: 15 or 22 kW
• Motor type: Electric
• Electrical connection: 400 V / 50 Hz / 32 or 63 A
• Cutting depth adjustment: Electro-hydraulic
• Feed: Hydrostatic
• Dimensions L/W/H (transport): 1550 / 940 / 1200 mm
• Weight: 580 kg
