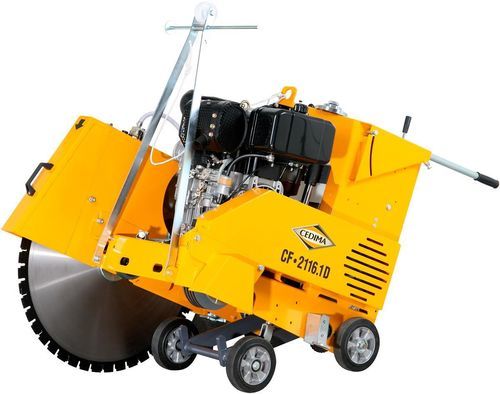

Concrete cutter CF-2116.1 D

Product description
The CF-2116.1 D concrete joint saw features a compact, user-oriented design and a powerful diesel engine with electric start for reliable cutting performance. A hydrostatic travel drive ensures smooth and uniform feed during cutting operations. The cutting depth is adjusted electro-hydraulically. Handle height is individually adjustable. A large 35 L water tank and an efficient water feed to the blade via the cutting shaft enable long, uninterrupted work cycles.

Functions & features

• Uniform feed through hydrostatic travel drive
• Height-adjustable handles
• Large 35 L water tank with water supply via the cutting shaft
• Hydraulic cutting depth adjustment
• Adjustable cutting depth indicator
• Blade mounting possible on right or left side

Accessories

• Fresh-concrete conversion kit

Technical data

• Max. cutting depth: 300 mm
• Max. blade Ø: 800 mm
• Min. blade Ø: 600 mm
• Blade bore: 25.4 mm
• Blade mounting side: right or left
• Max. clamping width: 20 mm
• Max. engine power (gross): 15.5 kW / 21 hp
• Net engine power: 14.7 kW
• Engine type: Diesel
• Engine model: NORWIK NK292F
• Engine start: Electric start
• Cutting depth adjustment: Electro-hydraulic
• Feed: Hydrostatic
• Water tank capacity: 35 L
• Dimensions L/W/H (transport): 1300 / 1000 / 1150 mm
• Weight: 340 kg

Characteristics / Specifications

• Model: CF-2116.1 D
• Maximum cutting depth: 300 mm
• Blade diameter (max./min.): 800 mm / 600 mm
• Blade bore: 25.4 mm
• Blade mounting: right or left
• Maximum clamping width: 20 mm
• Engine power (gross): 15.5 kW / 21 hp
• Net engine power: 14.7 kW
• Engine: Diesel, NORWIK NK292F, electric start
• Cutting depth adjustment: Electro-hydraulic
• Feed: Hydrostatic
• Water tank: 35 L
• Transport dimensions (L/W/H): 1300 / 1000 / 1150 mm
• Weight: 340 kg
