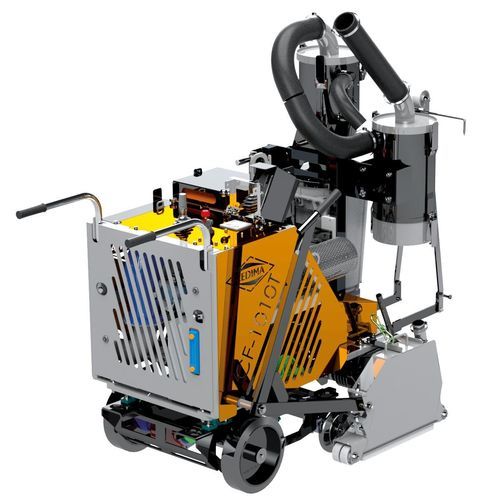

Concrete cutter CF-1010 T

Product description
The very compact dry-cut joint cutter CF-1010 T is specifically designed for fast cutting of contraction and expansion joints in asphalt or fresh concrete. No additional cooling water is required for joint cutting. The generated cuttings are filtered and collected in the powerful extraction unit and can be disposed of in an environmentally compliant way.

Recommended diamond blade
The optimal diamond blade for the CF-1010 T is the TFS SYNCRO with a diameter of 350 mm. The laser-welded segments with a segment width of 4.4 mm combined with the 3.8 mm steel core provide optimal stability and smooth running.

Functions & Features

• Integrated electronic cutting depth measurement with display
• Cutting depth shown on digital display
• Uniform feed via hydrostatic travel drive
• Integrated extraction unit with 2 cyclone separators
• No cutting slurry - fast site workflow
• Height-adjustable handles

Technical data

• Max. cutting depth: 110 mm
• Max. blade Ø: 350 mm
• Blade bore: 25.4 mm
• Blade mounting side: right
• Max. clamping width: 20 mm
• Max. engine power: 15.5 kW / 21 HP
• Net engine power: 15.5 kW
• Engine type: petrol
• Engine model: Honda GX-630
• Engine start: electric start
• Cutting depth actuation: electrohydraulic
• Feed: hydraulic
• Dimensions L/W/H (transport): 1510 / 750 / 1650 mm
• Weight: 510 kg

Characteristics / Specifications

• Model: CF-1010 T
• Dry-cut joint cutter for asphalt and fresh concrete
• Extraction unit with 2 cyclone separators
• Recommended blade: TFS SYNCRO Ø 350 mm, segment width 4.4 mm, steel core 3.8 mm
• Hydrostatic travel drive and electrohydraulic cutting depth actuation
