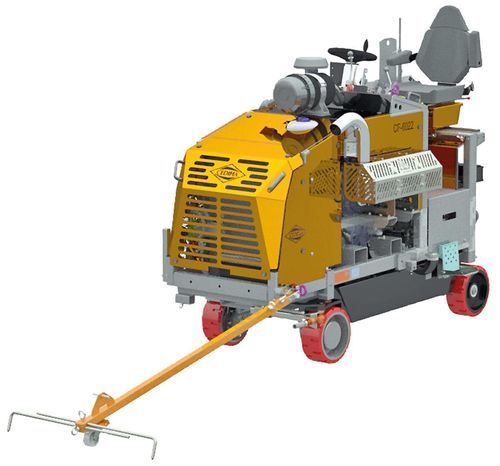

Concrete cutter CF-6022

Product description
The CF-6022 is a fully hydraulic joint cutter designed for long and extensive cutting operations in concrete or asphalt. All work functions and the propulsion are hydraulically driven and controlled. The operator seat is adjustable and the steering wheel can be mounted on the right or left depending on the cutting side. A wide range of accessory kits makes the CF-6022 a versatile machine for processing concrete and asphalt surfaces. The machine can be converted for microtrenching, a method for creating narrow trenches to lay fiber-optic cables in roads or sidewalks.

Functions & features

• Stage V (EU) / TIER 4 Final common-rail diesel engine
• Supplied with 1200 mm blade guard
• Fully hydraulic drive for all work functions
• Blade mounting possible on right or left side
• Continuously variable cutting shaft speed
• Standard auxiliary hydraulics to drive an extraction system

Accessories

• Extraction blade shield
• Light set
• Rotating beacon
• Longitudinal cut kit
• Fresh concrete kit
• Milling / grooving kit
• Extraction system
• Core drilling machine kit

Technical data

• Max. cutting depth: 480 mm
• Max. blade Ø: 1200 mm
• Min. blade Ø: 300 mm
• Cutting shaft speed: 930 - 2800 rpm
• Blade bore: 35 mm + 6 holes
• Blade mounting side: right or left
• Max. clamping width: 13 mm
• Max. engine power: 55.4 kW / 75.3 PS
• Net engine power: 55.4 kW
• Engine type: Diesel
• Engine model: Hatz 4H50TIC
• Engine start: Electric start
• Cutting depth adjustment: Electro-hydraulic
• Feed: Hydraulic
• Water pump: Yes
• Dimensions L/W/H (Transport): 2900 / 950 / 1840 mm
• Weight: 1400 kg

Characteristics / Technical specifications

• Fully hydraulic drive for all work functions and propulsion
• Diesel drive Stage V / TIER 4 Final (Common-Rail)
• Adjustable blade mounting on right or left side
• Continuously variable cutting shaft speed (930 - 2800 rpm)
• Max. blade diameter 1200 mm, max. cutting depth 480 mm
• Engine: Hatz 4H50TIC, net power 55.4 kW (75.3 PS)
• Hydraulic feed, electro-hydraulic cutting depth adjustment
• Integrable auxiliary hydraulics for extraction system and multiple attachments
