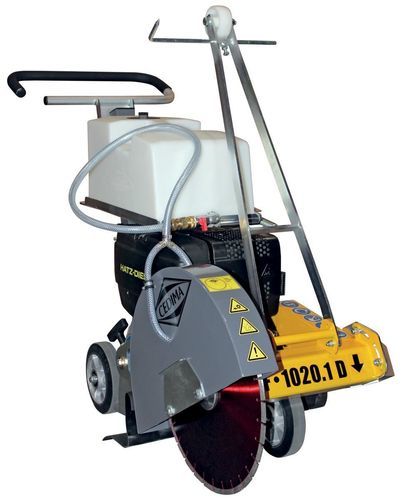

Concrete cutter CF-1020.1 D

Description
The CF-1020.1 D achieves an enormous cutting depth of 200 mm and is ideal for use in renovations and work in landscaping or road construction. It is well suited to rental fleets for construction equipment. The machine features compact, transport-friendly dimensions and a very low drive motor mounting that shifts the centre of gravity downward. Thanks to the swivel-arm principle, the drive motor remains in its low position when the saw blade is raised, resulting in high tilt resistance and simple, stable cutting.

Features & Characteristics

• Hatz diesel engine
• High tilt resistance due to low centre of gravity and maximum track width
• Constant cutting-shaft pressure at all cutting depths thanks to the swivel-arm principle
• 22 litre water tank with large filling opening
• Water tank swivels sideways to allow refuelling access
• Crane eye for lifting

Technical specifications

• Max. cutting depth: 200 mm
• Max. saw blade Ø: 500 mm
• Min. saw blade Ø: 350 mm
• Bore hole of blade: 25.4 mm
• Blade mounting: right or left
• Max. mounting width: 20 mm
• Max. motor output: 7.3 kW / 9.9 hp
• Net motor output: 7.3 kW
• Motor type: Diesel
• Motor designation: Hatz 1 B4OU-6
• Motor starter: Reversing start
• Cutting depth adjustment: Handwheel
• Feed: manual
• Water tank content: 22 l
• Dimensions L/W/H (transport): 1260 / 570 / 1050 mm
• Weight: 148 kg

Model / Technical data

• Model: CF-1020.1 D
• Max cutting depth: 200 mm
• Saw blade diameter: 350 - 500 mm
• Bore hole: 25.4 mm
• Motor: Hatz 1 B4OU-6, Diesel, 7.3 kW (9.9 hp)
• Water tank: 22 l
• Dimensions (transport) L/W/H: 1260 / 570 / 1050 mm
• Weight: 148 kg
