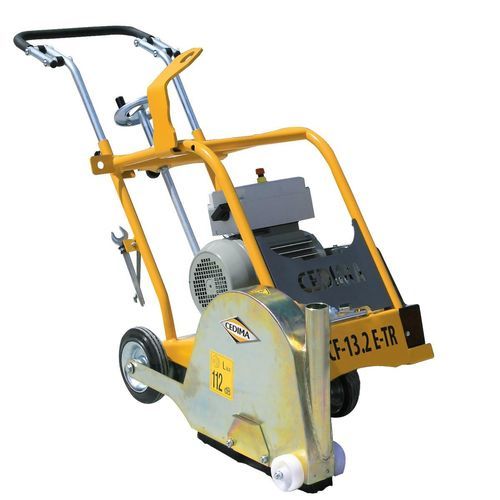

Concrete cutter CF-13.2 E-TR

Product description
Compact, easy to transport and equipped with a powerful electric motor — these are the defining attributes of the CF-13.2 E-TR. The versatile dry-cut joint cutter is designed for light refurbishment work in confined or awkward indoor spaces. Cutting depth is set by a handwheel and feed is performed manually by the operator. The operator handle is rubber-mounted to reduce vibration. Operation of the CF-13.2 E-TR requires a professional industrial vacuum with a suction capacity of 240 m³/h and a filter area of at least 1.5 m².

Functions & features

• Star-delta changeover switch
• Adjustable cutting depth indicator and locking brake
• Height-adjustable, vibration-damped push handle
• Retractable transport handle for manual repositioning
• Lifting eye for easy loading of the machine
• Stepless cutting-depth adjustment via hand crank

Technical data

• Max. cutting depth: 120 mm
• Max. blade Ø: 350 mm
• Min. blade Ø: 300 mm
• Blade bore: 25.4 mm
• Blade mounting side: right
• Max. slit width: 15 mm
• Max. motor power: 7.5 kW
• Motor type: electric
• Cutting depth adjustment: hand crank
• Feed: manual
• Dimensions L/W/H (transport): 820 / 520 / 870 mm
• Weight: 106 kg

Characteristics / Technical specifications

• Model: CF-13.2 E-TR
• Maximum cutting depth: 120 mm
• Blade diameter: 300–350 mm
• Bore: 25.4 mm
• Blade mounting: right
• Motor power: 7.5 kW (electric)
• Feed: manual
• Cut adjustment: hand crank
• Transport dimensions (L/W/H): 820 / 520 / 870 mm
• Weight: 106 kg
