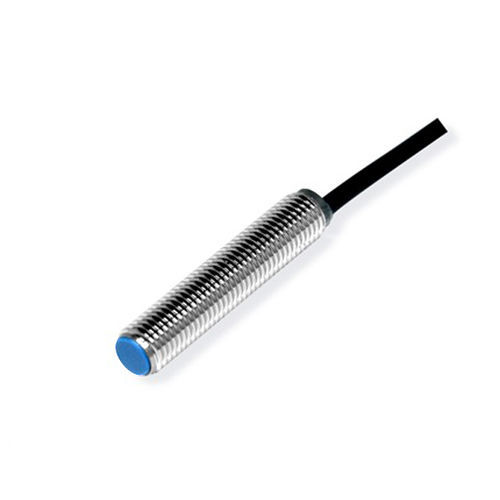

Inductive proximity sensor CL05-RF1DN1cylindricalM5with semiconductor output
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M5
- Output signal
- with switching function, NPN, with semiconductor output
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, brass, PVC
- Protection level
- IP67
- Other characteristics
- non-contact, 3-wire, compact
- Measuring range
Min.: 0 mm
(0 in)Max.: 1 mm
(0.04 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Key specifications
- Product series: CL05 series proximity sensors
- Model: CL05-RF1DN1
- Type: Ultra-compact
- Sensing distance: 1 mm
- Form factor: Cylindrical
- Detection principle: Inductive
- Thread/size: M5
- Output: NPN NO
Technical specifications
- Cable length: 2 m
- Sensing direction: Front
- Operating frequency: 500 Hz
- Response time: 1 ms
- Detectable targets: Metal objects
- Accessories: 2 nuts, 1 serrated washer, inspection certificate
- Hysteresis: ≤10% of sensing distance
- Standard test target: Iron 5×5×1 mm
- Temperature drift: Within ±10% over -25~+70 °C (reference +23 °C)
- Materials: Housing nickel-plated brass; sensing face heat-resistant ABS; cable PVC
Mechanical / Electrical parameters
- Output type: NPN NO
- Supply voltage: DC 12~24 V
- Wiring: 3-wire DC
- Ingress protection: IP67
- Connection: Molded cable
- Signal type: Switching
- Operation mode: Normally open (NO)
- Mounting: Flush / embedded
- Current consumption: <13 mA
- Indicator: Red output LED
- Protection: Short-circuit protection, power surge protection
- Voltage influence: Within ±15% of rated voltage, sensing distance change ≤±1%
- Load current: ≤200 mA
- Insulation resistance: ≥50 MΩ (DC 500 V megger) between live parts and housing
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times
- Dielectric strength: AC 1000 V 50/60 Hz for 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z directions, 2 h
- Weight: 21 g
Operating environment
- Operating temperature: -25~70 °C
Key specifications
- Model: CL05-RF1DN1
- Sensing distance: 1 mm
- Principle: Inductive (for metal targets)
- Form/size: M5 cylindrical, flush mounting
- Output: NPN normally open (NO), switching output
- Supply: DC 12~24 V, 3-wire DC, current consumption <13 mA
- Protection: IP67
- Cable: Molded cable, length 2 m
- Operating temperature range: -25~70 °C
- Weight: 21 g
