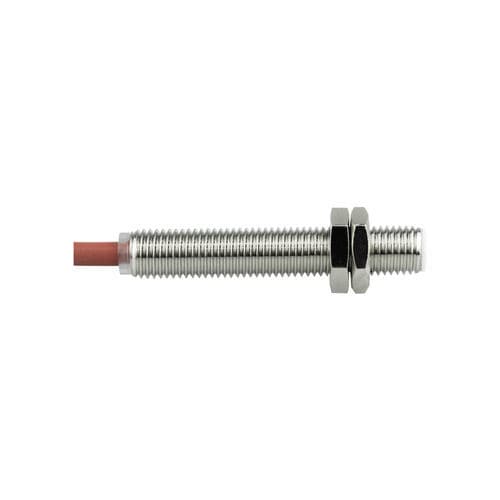

Inductive proximity sensor CL08-RN2DL1/H
cylindricalM8with switching function

Inductive proximity sensor - CL08-RN2DL1/H - CHANKO SENSOR - cylindrical / M8 / with switching function

Add to favorites

Compare this product

Go to the CHANKO SENSOR website for more information

Characteristics

Technology

inductive

Shape

cylindrical

Diameter

Output signal

with switching function, 2-wire

Supply voltage

DC, 24VDC, 12VDC

Mounting

non-flush

Material

brass, PVC, PTFE

Other characteristics

high-temperature

Measuring range

0.2 cm
(0.08 in)

Process temperature

Max.: 120 °C
(248 °F)

Min.: 0 °C
(32 °F)

Description

Overview

Model: CL08-RN2DL1/H
Series: CL08 proximity sensors
Product type: high-temperature version
Detection distance: 2 mm
Housing: cylindrical
Detection principle: inductive
Size: M8
Output: DC 2-wire Normally Open (DC 2-wire NO)

Technical specifications

Product type: high-temperature version
Detection distance: 2 mm
Housing: cylindrical
Detection principle: inductive
Size: M8
Cable length: 2 m
Detection direction: frontal
Response frequency: 500 Hz
Response time: 1 ms
Detectable object: metal
Special requirement: high-temperature resistance
Accessories: 2 nuts, 1 serrated washer, certificate
Hysteresis: < 10% of detection distance
Standard test object: iron 8 x 8 x 1 mm
Temperature drift: within ±15% relative to +23°C over range 0~+120°C
Materials: housing brass nickel-plated; sensing face PTFE; cable PVC
Weight: 50 g

Mechanical / Electrical parameters

Output: DC 2-wire NO
Supply voltage: DC 12~24 V
Power supply: DC two-wire
Protection rating: IP67
Connection: molded cable
Signal type: switching
Operation mode: Normally Open
Mounting: non-embedded
Indicator: yellow output LED
Residual voltage: < 3 V (non-polarity < 5 V) at 100 mA load, cable length 2 m
Supply voltage influence: within ±1% detection distance change for ±15% supply variation
Load current: 100 mA (with 2 m cable)
Insulation resistance: > 50 MΩ (DC 500 V megohmmeter) between live parts and housing
Switching capacity: < 100 mA
Leakage current: < 0.8 mA
Shock resistance: 500 m/s², X, Y, Z directions 3 times
Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
Vibration resistance: 10–55 Hz double amplitude 1.5 mm, X, Y, Z directions 2 h
Weight: 50 g

Operating environment

Operating temperature: 0~120°C

Accessories

2 nuts, 1 serrated washer, certificate

Features / specifications

Model: CL08-RN2DL1/H
Series: CL08 proximity sensors
Detection distance: 2 mm
Detection principle: inductive (for metal detection)
Housing/mounting: M8 cylindrical, non-embedded
Output/power: DC 2-wire Normally Open (DC 12~24 V, DC 2-wire NO)
Cable: molded cable, length 2 m
Response performance: 500 Hz, 1 ms
Protection/environment: IP67, operating temperature 0~120°C (high-temperature type)
Materials: brass nickel-plated housing; PTFE sensing face; PVC cable
Accessories: 2 nuts, 1 serrated washer, certificate
Weight: 50 g
