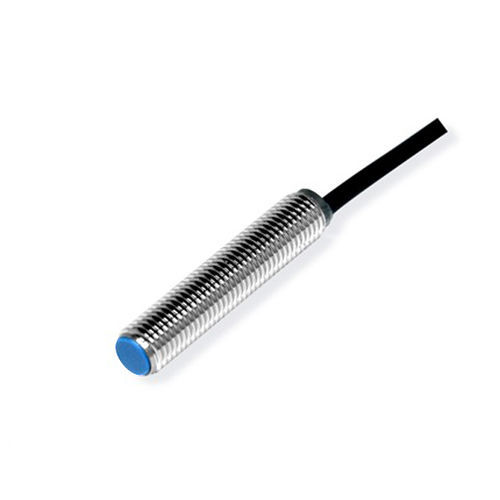

Inductive proximity sensor CL05-RF1DP2cylindricalM5PNP
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M5
- Output signal
- PNP
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, brass, PVC
- Protection level
- IP67
- Other characteristics
- 3-wire, compact
- Measuring range
Min.: 0 mm
(0 in)Max.: 1 mm
(0.04 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product
Key features
Mechanical / Electrical parameters
Operating environment
Materials
Technical specifications
- Model: CL05-RF1DP2
- Series: CL05 proximity sensor series
Key features
- Product type: ultra-compact
- Sensing distance: 1 mm
- Form factor: cylindrical, M5
- Principle: inductive
- Output: PNP normally closed (NC)
- Cable length: 2 m (moulded cable)
- Sensing direction: front
- Switching frequency: 500 Hz
- Response time: 1 ms
- Detectable target: metal (standard test piece: Fe 5×5×1 mm)
- Accessories: 2 nuts, 1 toothed washer, certificate
Mechanical / Electrical parameters
- Output type: PNP NC
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: moulded cable
- Signal type: switching
- Operating mode: normally closed
- Mounting: flush (embedded)
- Current consumption: < 13 mA
- Indicator: red output LED
- Protection circuits: short-circuit and surge protection
- Voltage influence: within ±15% supply, sensing distance change ≤ ±1%
- Load current: < 200 mA
- Insulation resistance: > 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 shocks each X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each X, Y, Z
- Weight: 21 g
Operating environment
- Operating temperature: -25 to 70 °C
- Temperature drift: within ±10% over -25 to +70 °C referenced to +23 °C
Materials
- Housing: nickel-plated brass
- Sensing face: heat-resistant ABS
- Cable: PVC
Technical specifications
- Model: CL05-RF1DP2
- Product type: ultra-compact
- Principle: inductive
- Sensing distance: 1 mm
- Supply voltage: DC 12–24 V
- Output: PNP NC
- Protection: IP67
- Cable length: 2 m
- Response time: 1 ms (500 Hz)
- Materials: housing - nickel-plated brass; sensing face - heat-resistant ABS; cable - PVC
