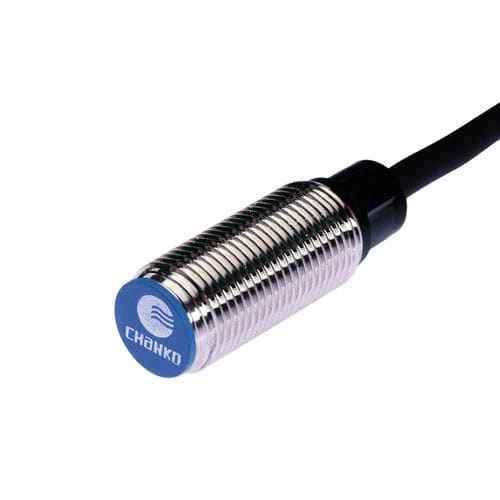

Inductive proximity sensor CL12-RF4DP2cylindricalM12PNP
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- PNP
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, brass, PVC
- Applications
- industrial
- Other characteristics
- 3-wire
- Measuring range
Min.: 0 mm
(0 in)Max.: 4 mm
(0.16 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product summary
Main features
Technical specifications
Mechanical / Electrical parameters
Operating environment
Typical applications
- Series: CL12 inductive proximity sensors
- Model: CL12-RF4DP2
Main features
- Type: extended-range inductive sensor
- Sensing distance: 4 mm
- Housing: cylindrical, M12
- Sensing principle: inductive
- Output: PNP, normally closed (NC)
Technical specifications
- Cable length: 2 m
- Sensing direction: frontal (face)
- Switching frequency: 1000 Hz
- Response time: 500 μs
- Detectable targets: metal
- Hysteresis: <= 10% of sensing distance
- Reference target: iron 12 × 12 × 1 mm
- Temperature drift: within ±10% over -25 to +70 °C (reference +23 °C)
- Materials: housing – nickel-plated brass; sensing face – heat-resistant ABS; cable – PVC
- Accessories: 2 nuts, 1 serrated washer, inspection certificate
Mechanical / Electrical parameters
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching (discrete)
- Switching mode: normally closed
- Mounting: flush / embeddable
- Current consumption: <= 13 mA
- Indicator: red output LED
- Protection circuits: short-circuit and surge protection
- Voltage influence: detection distance variation within ±1% for ±15% supply variation
- Load current: <= 200 mA
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 shocks per axis (X, Y, Z)
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h per axis
- Dielectric strength: AC 1000 V 50/60 Hz, 1 min
- Weight: approx. 67 g
Operating environment
- Operating temperature: -25 to +70 °C
Typical applications
- Metal detection, position sensing and presence monitoring in industrial automation and assembly lines
