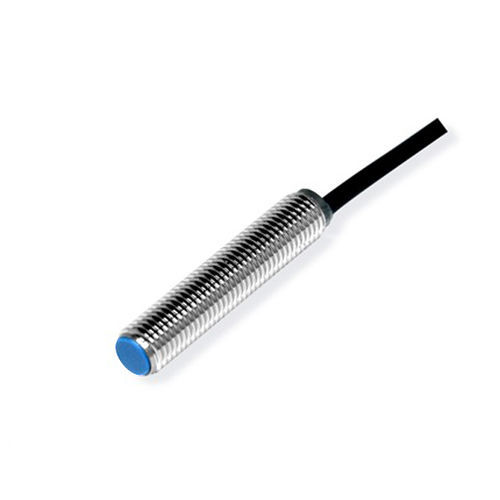

Inductive proximity sensor CL05-RF1.5DN1cylindricalM5with semiconductor output
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M5
- Output signal
- with switching function, NPN, with semiconductor output
- Mounting
- flush
- Material
- plastic, brass, PVC
- Protection level
- IP67
- Applications
- industrial
- Other characteristics
- 3-wire, compact
- Measuring range
Max.: 1.5 mm
(0.06 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Accessories & remarks
- Product type: ultra-compact inductive proximity sensor
- Sensing distance: 1.5 mm
- Housing: cylindrical, M5
- Sensing principle: inductive
- Output: NPN, normally open (NO)
- Cable length: 2 m
Technical specifications
- Model: CL05-RF1.5DN1 (CL05 series)
- Standard target: iron 5 × 5 × 1 mm
- Sensing distance tolerance / hysteresis: less than 10% of sensing distance
- Temperature drift: within ±10% over -25 to +70 °C (reference +23 °C)
- Response frequency: 500 Hz
- Response time: 1 ms
- Sensing direction: front
- Detectable object: metal
- Materials: housing brass, nickel-plated; sensing face heat-resistant ABS; cable PVC
Mechanical / Electrical parameters
- Output type: NPN NO
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Operating mode: normally open
- Mounting: flush / embeddable
- Current consumption: < 13 mA
- Indicator: red output LED
- Protection circuits: short-circuit protection, surge protection
- Supply variation effect: within ±1% detection distance for ±15% supply variation
- Maximum load current: < 200 mA
- Insulation resistance: > 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 times each X/Y/Z
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h each X/Y/Z
- Weight: 21 g
Operating environment
- Operating temperature range: -25 to +70 °C
Accessories & remarks
- Accessories: 2 nuts, 1 serrated washer, inspection certificate
- Typical use: metal object detection in compact installations
