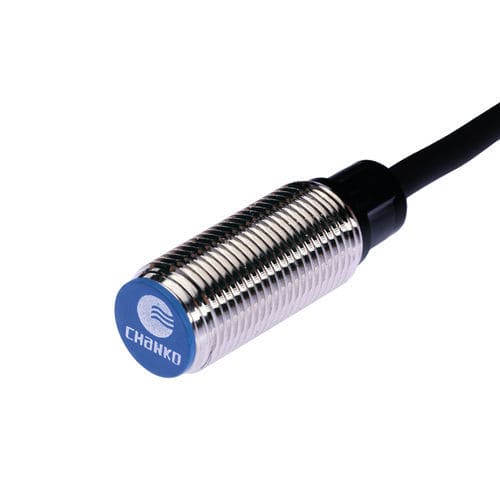

Inductive proximity sensor CL12-RF4DN1cylindricalM12digital
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- digital, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, brass, PVC
- Protection level
- IP67
- Other characteristics
- non-contact, 3-wire
- Measuring range
Max.: 4 mm
(0.16 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product
Technical specifications
Mechanical/electrical parameters
Operating environment
Key specifications
- Type: Extended-range inductive proximity sensor
- Sensing distance: 4 mm
- Housing: cylindrical (M12)
- Sensing principle: inductive
- Output configuration: NPN, normally open (NO)
Technical specifications
- Sensing distance: 4 mm
- Housing: cylindrical, M12
- Cable length: 2 m
- Sensing direction: frontal
- Switching frequency: 1000 Hz
- Response time: 500 μs
- Detectable target: metal
- Accessories: 2 nuts, 1 serrated washer, inspection certificate
- Hysteresis: <10% of sensing distance
- Standard target: iron 12 × 12 × 1 mm
- Temperature drift: within ±10% over -25 to +70 °C (reference +23 °C)
- Materials: housing nickel-plated brass; sensing face heat-resistant ABS; cable PVC
Mechanical/electrical parameters
- Output: NPN, normally open (NO)
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Ingress protection: IP67
- Connection: molded cable
- Signal type: discrete switching
- Operating mode: normally open
- Mounting: flush/embedded
- Current consumption: <13 mA
- Indicator: red output LED
- Protection: short-circuit and surge protection
- Voltage tolerance: within ±15% supply variation -> sensing distance change ≤ ±1%
- Max load current: <200 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min (live parts to housing)
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
- Weight: approx. 67 g
Operating environment
- Operating temperature: -25 to +70 °C
Key specifications
- Model: CL12-RF4DN1
- Sensing distance: 4 mm
- Dimensions: M12, cable length 2 m
- Principle: inductive, target: metal
- Output: NPN NO, discrete switching
- Supply: DC 12–24 V, current <13 mA, max load <200 mA
- IP rating: IP67
- Switching frequency: 1000 Hz, response time: 500 μs
- Materials: nickel-plated brass housing; heat-resistant ABS sensing face; PVC cable
- Mounting: flush/embedded; indicator: red output LED
- Protection: short-circuit and surge protection
