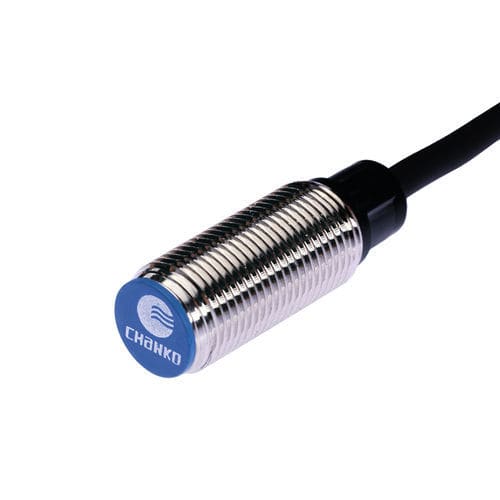

Inductive proximity sensor CL12-RF4DN2cylindricalM12NPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- NPN
- Electrical connection
- bare wires
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, brass
- Protection level
- IP67
- Other characteristics
- non-contact, 3-wire
- Measuring range
Max.: 4 mm
(0.16 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Electrical and mechanical parameters
Operating environment
Applications
Ordering information
- Type: Enhanced-range inductive proximity sensor
- Model: CL12-RF4DN2
- Sensing distance: 4 mm
- Housing: M12 brass, nickel-plated; sensing face: heat-resistant ABS; cable: PVC
- Detection principle: Inductive (metal targets)
- Output: NPN, normally closed (NC)
- Cable length: 2 m (molded cable)
- Protection rating: IP67
- Response frequency: 1000 Hz; response time: 500 μs
- Standard target: Fe 12×12×1 mm
- Accessories: 2 nuts, 1 toothed washer, certificate
Electrical and mechanical parameters
- Supply voltage: DC 12–24 V; three-wire DC
- Current consumption: ≤13 mA
- Load current: ≤200 mA
- Signal type: Switching output; operating mode: normally closed
- Mounting: flush/embedded
- Indicator: red output LED
- Protection circuits: short-circuit and surge protection
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Withstand voltage: AC 1000 V, 50/60 Hz, 1 min (between live parts and housing)
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z directions, 2 h
- Voltage variation effect: within ±15% supply variation, sensing distance change ≤±1%
- Hysteresis: <10% of sensing distance
- Weight: approx. 67 g
Operating environment
- Operating temperature: -25 to +70 °C
- Temperature drift: within ±10% over -25 to +70 °C relative to +23 °C
Applications
- Metal detection and position sensing in industrial automation
- Conveyors, assembly lines, packaging, machine tools, robotics
- Suitable for embedded M12 installations requiring IP67 protection
Ordering information
- Model: CL12-RF4DN2
- Series: CL12 proximity sensor series
