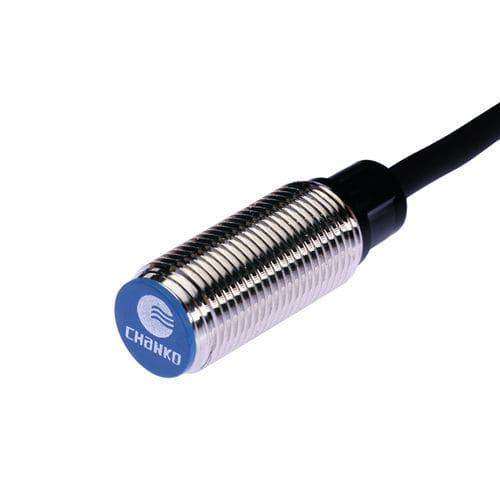

Inductive proximity sensor CL12-RF4DP1cylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- PNP, with switching function
- Electrical connection
- bare wires
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass
- Other characteristics
- 3-wire
- Measuring range
Max.: 4 mm
(0.16 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Series / technical characteristics
- Product type: extended sensing range
- Sensing distance: 4 mm
- Body shape: cylindrical
- Sensing principle: inductive
- Thread size: M12
- Output type: PNP NO
Technical specifications
- Cable length: 2 m
- Sensing direction: frontal
- Response frequency: 1000 Hz
- Response time: 500 μs
- Detectable objects: metallic targets
- Accessories: 2 nuts, 1 tooth washer, inspection certificate
- Hysteresis: under 10% of sensing distance
- Standard target: Fe 12×12×1 mm
- Temperature drift: within ±10% over -25 ~ +70 °C referenced to +23 °C
- Materials: housing nickel-plated brass; sensing face heat-resistant ABS; cable PVC
Mechanical / electrical parameters
- Output: PNP NO
- Supply voltage: DC 12 ~ 24 V
- Power supply: DC three-wire
- Protection rating: IP67
- Connection: molded cable
- Signal type: switching
- Operating mode: normally open
- Mounting: flush (embeddable)
- Current consumption: under 13 mA
- Indicator: red output LED
- Protection circuits: short-circuit and power surge protection
- Voltage influence: within ±1% for ±15% supply variation
- Load current: under 200 mA
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s in X, Y, Z directions, 3 times each
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10 ~ 55 Hz double amplitude 1.5 mm in X, Y, Z for 2 h
- Weight: approx. 67 g
Operating environment
- Operating temperature: -25 ~ 70 °C
Series / technical characteristics
- Series: CL12 series
- Model: CL12-RF4DP1
- Sensing distance: 4 mm
- Thread size: M12
- Output: PNP NO
- Supply: DC 12 ~ 24 V, DC three-wire
- Protection rating: IP67
- Cable length: 2 m (molded cable)
- Response frequency / time: 1000 Hz / 500 μs
- Materials: nickel-plated brass housing, heat-resistant ABS sensing face, PVC cable
- Accessories: 2 nuts, 1 tooth washer, inspection certificate
