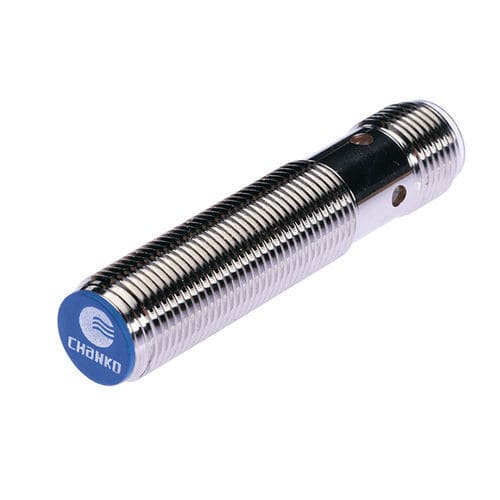

Inductive proximity sensor CL12-RF4DN1-AcylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, NPN
- Electrical connection
- M12 connector
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
Min.: 0 mm
(0 in)Max.: 4 mm
(0.16 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product name
Overview
Technical specifications
Mechanical / Electrical parameters
Recommended applications
Features / Technical summary
- CL12-RF4DN1-A — CL12 series proximity sensor
Overview
- Type: extended distance
- Sensing distance: 4 mm
- Housing: cylindrical
- Detection principle: inductive
- Thread size: M12
- Output: NPN normally open (NPN NO)
Technical specifications
- Cable length: 0.5 m
- Sensing direction: front
- Switching frequency: 1000 Hz
- Response time: 500 μs
- Detectable object: metallic objects
- Hysteresis: less than 10% of sensing distance
- Standard target: iron 12×12×1 mm
- Temperature drift: within ±10% of sensing distance over -25°C to +70°C (reference +23°C)
- Materials: housing - nickel-plated brass; sensing face - heat-resistant ABS; cable - PVC
- Accessories: 2 nuts, 1 serrated washer, inspection certificate
Mechanical / Electrical parameters
- Supply voltage: DC 12–24 V
- Connection: 3-wire DC
- Protection rating: IP67
- Connector: plug type
- Signal type: switching
- Switching mode: normally open
- Mounting: embedded (flush) mounting
- Current consumption: ≤13 mA
- Indicator: red output indicator
- Protection circuits: short-circuit protection, surge protection
- Voltage effect: within ±15% of rated supply, sensing distance variation within ±1%
- Load current: ≤200 mA
- Insulation resistance: ≥50 MΩ (DC500V megger, sensing circuit to housing)
- Shock resistance: 500 m/s², 3 shocks each direction X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (sensing circuit to housing)
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h each
Recommended applications
- 3C electronics industry
- Automated parking systems
- Logistics and warehousing
Features / Technical summary
- Model: CL12-RF4DN1-A
- Series: CL12 proximity sensor series
- Sensing distance: 4 mm
- Thread size: M12, cylindrical
- Output: NPN normally open
- Supply: DC 12–24 V, 3-wire DC
- Protection rating: IP67
- Switching frequency / response time: 1000 Hz / 500 μs
- Cable length: 0.5 m
- Materials: nickel-plated brass (housing), heat-resistant ABS (sensing face), PVC (cable)
- Accessories: 2 nuts, 1 serrated washer, inspection certificate
