Micromotor 0615N5M
synchronousDC6 V

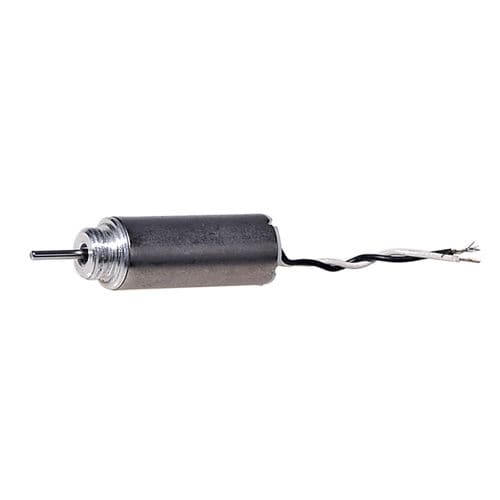

Micromotor - 0615N5M - Constar Motion Co., LTD - synchronous / DC / 6 V
Micromotor - 0615N5M - Constar Motion Co., LTD - synchronous / DC / 6 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
synchronous, DC
Voltage
6 V, 3 V
Configuration
coreless, micro
Applications
industrial, for medical equipment, for robotics, for automotive applications
Other characteristics
precision
Power

0.09 W, 0.11 W, 0.83 W
(0 hp, 0 hp, 0 hp)

Intensity

50 mA, 60 mA, 180 mA

Torque

0 Nm, 0.0001 Nm, 0.0003 Nm
(0 ft.lb, 0.000074 ft.lb, 0.000221 ft.lb)

Rotational speed

8,500 rpm, 13,770 rpm, 21,230 rpm
(53,407.0751 rad.min-1, 86,519.4617 rad.min-1, 133,392.0241 rad.min-1)

Diameter

6 mm
(0.24 in)

Description

0615N5M 6mm Micro DC Coreless Motor Diameter：6mm Length ：15mm Voltage：3V 、6V Max. output power ：0.11W Speed：12200-29500rpm Applications Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
