Coreless motor 1230N7M
synchronousDC12 V

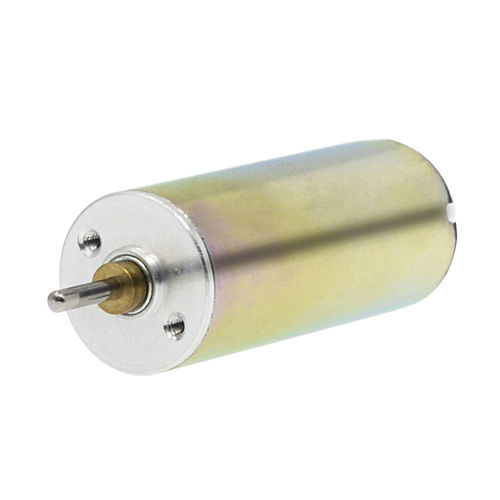

Coreless motor - 1230N7M - Constar Motion Co., LTD - synchronous / DC / 12 V
Coreless motor - 1230N7M - Constar Motion Co., LTD - synchronous / DC / 12 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
synchronous, DC
Voltage
12 V, 6 V
Configuration
coreless, micro
Applications
industrial, for medical equipment, for robotics, for automotive applications
Other characteristics
precision
Power

5.75 W, 6.23 W
(0.01 hp, 0.01 hp)

Intensity

0.19 A, 0.47 A

Torque

0.0014 Nm
(0.001033 ft.lb)

Rotational speed

13,160 rpm, 14,490 rpm
(82,686.7186 rad.min-1, 91,043.3551 rad.min-1)

Diameter

12 mm
(0.47 in)

Description

1230N7M 12mm 12V Micro Coreless DC Motor Diameter：12mm Lengh ：30mm Voltage：6V、12V Max. Output Power ：6.23W Speed：16000rpm Applications Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
