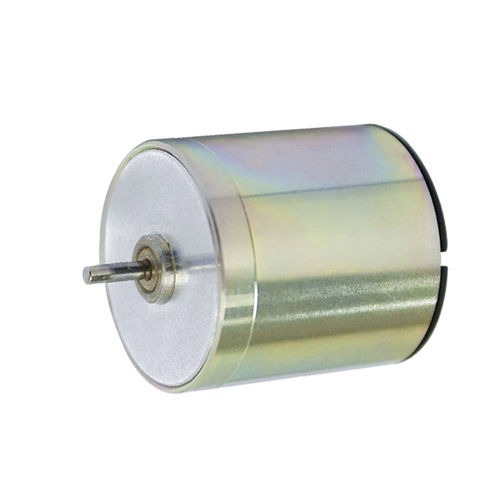

Coreless motor 2224N5MsynchronousDC12 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 12 V, 6 V
- Configuration
- coreless
- Applications
- industrial, for medical equipment, for robotics, for the automotive industry
- Other characteristics
- precision
- Power
5.9 W, 6.8 W, 17.7 W
(0.01 hp, 0.01 hp, 0.02 hp)- Intensity
0.33 A, 0.75 A, 0.99 A
- Torque
0.003 Nm, 0.005 Nm
(0.002213 ft.lb, 0.003688 ft.lb)- Rotational speed
8,360 rpm, 9,530 rpm, 13,950 rpm
(52,527.4292 rad.min-1, 59,878.756 rad.min-1, 87,650.435 rad.min-1)- Diameter
22 mm
(0.87 in)
Description
2224N5M
2224 Coreless DC Motor
Diameter：22mm Length ：24mm Voltage：6V、12V Max. Output Power ：6.8W Speed：10500rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
