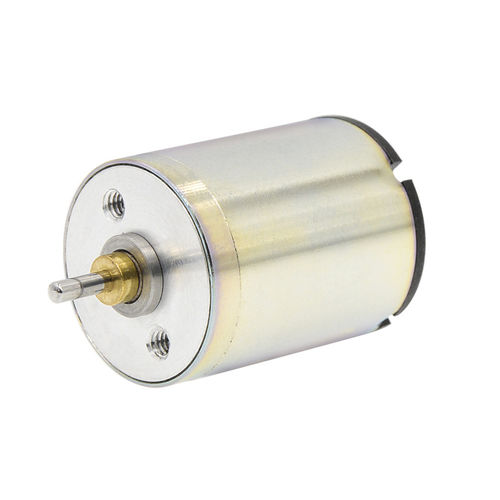

Coreless motor 1620N5M
synchronousDC6 V

Coreless motor - 1620N5M - Constar Motion Co., LTD - synchronous / DC / 6 V
Coreless motor - 1620N5M - Constar Motion Co., LTD - synchronous / DC / 6 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
synchronous, DC
Voltage
6 V, 5 V, 3 V
Configuration
coreless, micro
Applications
industrial, for medical equipment, for robotics, for automotive applications
Other characteristics
precision
Power

0.34 W, 0.45 W, 3.43 W
(0 hp, 0 hp, 0 hp)

Intensity

0.78 mA, 90 mA

Torque

0.0005 Nm, 0.0025 Nm
(0.000369 ft.lb, 0.001844 ft.lb)

Rotational speed

3,940 rpm, 5,850 rpm, 11,100 rpm
(24,755.7501 rad.min-1, 36,756.634 rad.min-1, 69,743.3569 rad.min-1)

Diameter

16 mm
(0.63 in)

Description

1620N5M 16mm Micro Coreless DC Motor 5V Diameter：16mm Length ：20mm Voltage：3V 、5V、6V Max. Output Power ：0.34W Speed：4850-16000rpm Applications Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
