Coreless motor 1025N5M
synchronousDC12 V

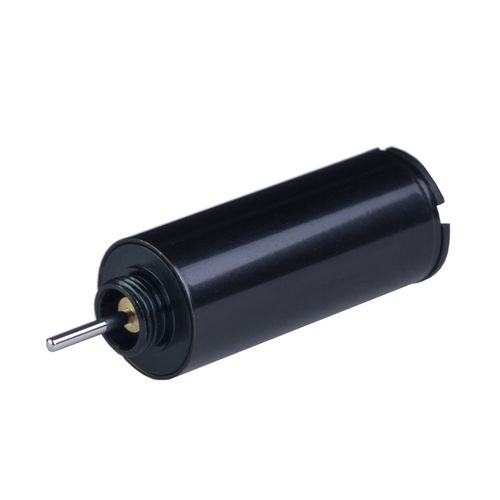

Coreless motor - 1025N5M - Constar Motion Co., LTD - synchronous / DC / 12 V
Coreless motor - 1025N5M - Constar Motion Co., LTD - synchronous / DC / 12 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
synchronous, DC
Voltage
12 V, 6 V
Configuration
coreless, micro
Applications
industrial, for medical equipment, for robotics, for automotive applications
Other characteristics
precision
Power

1.32 W, 1.59 W
(0 hp, 0 hp)

Intensity

0.14 A, 0.25 A

Torque

0.0005 Nm
(0.000369 ft.lb)

Rotational speed

9,650 rpm, 11,300 rpm
(60,632.7382 rad.min-1, 70,999.994 rad.min-1)

Diameter

10 mm
(0.39 in)

Description

1025N5M 1025 Micro Coreless DC Motor Diameter：10mm Length ：25mm Voltage：6V、12V Max. Output Power ：1.32W Speed：13000-15000rpm Applications Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
