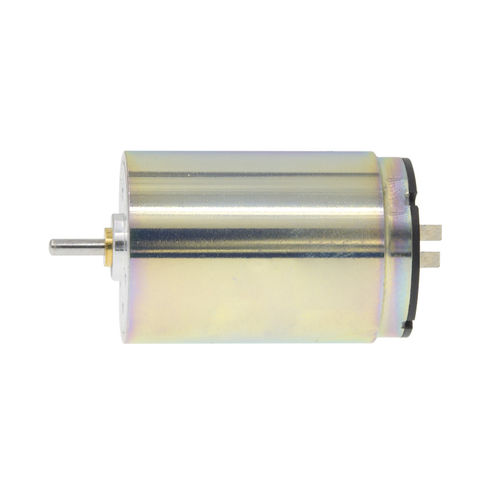

Coreless motor 1735N5C2BsynchronousDC24 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 24 V, 12 V
- Configuration
- coreless
- Applications
- industrial, for medical equipment, for robotics, for the automotive industry
- Other characteristics
- precision
- Power
5.5 W, 6.8 W
(0.01 hp, 0.01 hp)- Intensity
0.21 A, 0.57 A
- Torque
0.005 Nm
(0.003688 ft.lb)- Rotational speed
7,080 rpm, 9,500 rpm
(44,484.952 rad.min-1, 59,690.2604 rad.min-1)- Diameter
17 mm
(0.67 in)
Description
1735N5C2B
17mm Coreless DC Motor
Diameter：17mm Length ：35mm Voltage：12V、24V Max. Output Power ：6.8W Speed：12500rpm
Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder
Unit Price
Price upon request
