Coreless motor 1230N5M
asynchronousDC24 V

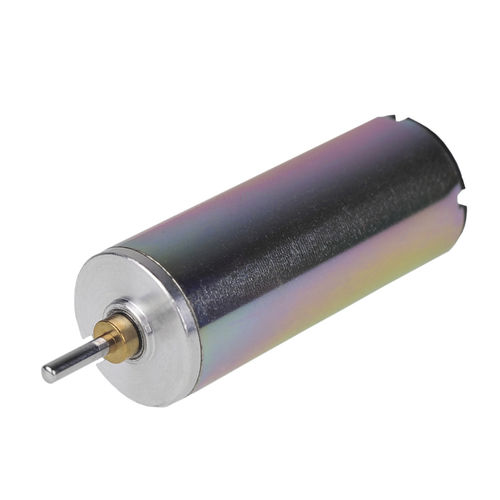

Coreless motor - 1230N5M - Constar Motion Co., LTD - asynchronous / DC / 24 V
Coreless motor - 1230N5M - Constar Motion Co., LTD - asynchronous / DC / 24 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
asynchronous, DC
Voltage
24 V, 12 V
Configuration
coreless, micro
Applications
industrial, for medical equipment, for robotics, for the automotive industry
Power

0.52 W, 2.4 W, 3.36 W
(0 hp, 0 hp, 0 hp)

Intensity

0.09 A, 0.18 A, 0.31 A

Torque

0.0009 Nm, 0.003 Nm, 0.0037 Nm
(0.000664 ft.lb, 0.002213 ft.lb, 0.002729 ft.lb)

Rotational speed

3,550 rpm, 6,090 rpm, 8,320 rpm
(22,305.3078 rad.min-1, 38,264.5985 rad.min-1, 52,276.1018 rad.min-1)

Diameter

12 mm
(0.47 in)

Description

1230N5M 1230 12V Micro DC Coreless Motor Diameter：12mm Length ：30mm Voltage：5.3V 、12V、24V Max. Output Power ：0.52W Speed：4450-11300rpm Applications Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
