Coreless motor 2225N5M
synchronousDC12 V

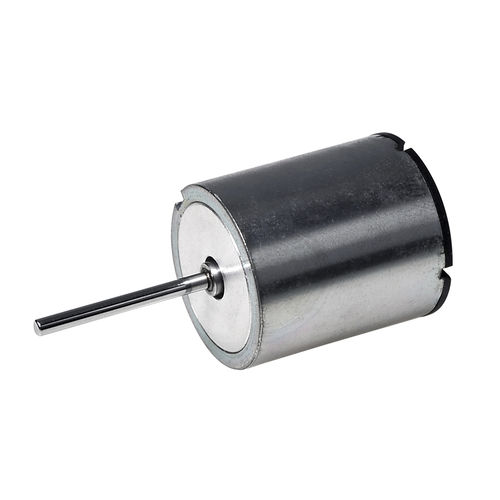

Coreless motor - 2225N5M - Constar Motion Co., LTD - synchronous / DC / 12 V
Coreless motor - 2225N5M - Constar Motion Co., LTD - synchronous / DC / 12 V
Add to favorites
Compare this product
Go to the Constar Motion Co., LTD website for more information

Characteristics

Type
synchronous, DC
Voltage
12 V
Configuration
coreless
Applications
industrial, for medical equipment, for robotics, for the automotive industry
Other characteristics
precision
Power

4.3 W, 6.1 W
(0.01 hp, 0.01 hp)

Intensity

0.37 A, 0.82 A

Torque

0.0025 Nm, 0.003 Nm
(0.001844 ft.lb, 0.002213 ft.lb)

Rotational speed

9,270 rpm, 13,330 rpm
(58,245.1278 rad.min-1, 83,754.8601 rad.min-1)

Diameter

22 mm
(0.87 in)

Description

2225N5M 22mm Coreless DC Motor For Nail Gun Diameter：22mm Length ：25mm Voltage：7.2V、12V Max. Output Power ：6.1W Speed：16100rpm Applications Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation Options Lead wires length、Shaft length、Special coils、Gearheads Unit Price Price upon request
