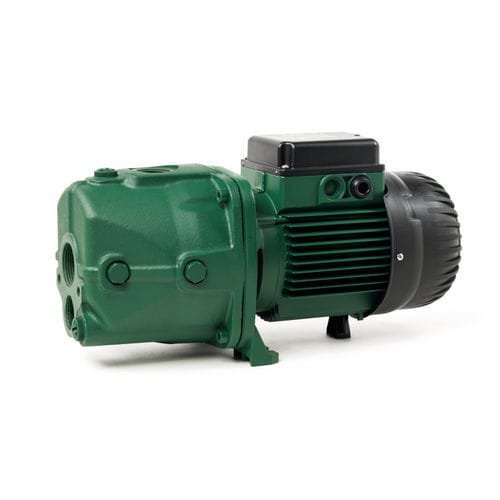

Centrifugal pump DPwaterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- suction
- Material
- cast iron
- Fluid specification
- for abrasive fluids
- Other characteristics
- integrated
- Flow
Max.: 4.3 m³/h
(151.85307 ft³/h)Min.: 0.15 m³/h
(5.2972 ft³/h)- Pressure
8 bar
(116.03 psi)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Length
427 mm, 480 mm
(17 in, 19 in)- Width
240 mm, 246 mm
(9.45 in, 9.69 in)- Height
240 mm, 307 mm
(9.45 in, 12.09 in)- Weight
10.7 kg, 13 kg, 27.9 kg, 28.5 kg, 32.5 kg
(23.59 lb, 28.66 lb, 61.51 lb, 62.83 lb, 71.65 lb)
Description
Self-priming centrifugal pump for suction up to 27 metres, reached by means of an ejector to be inserted in wells with a diameter of 4" or over.
Self priming centrifugal pump for suction up to 27 metres, reached by using the ejector to be inserted in wells from 4” in diameter or larger. Used for
water supply in large country homes and small farms.
CONSTRUCTIONAL FEATURES OF THE PUMP
Pump:
Ejector:
Cast-iron pump body and motor support. Impeller and diffuser in technopolymer.
Stainless steel wear ring. Carbon/ceramic mechanical seal.
Body in cast iron Venturi tube in technopolymer A and nozzle in brass
The ejector is available in three models (E 20 - E 25 - E 30) depending on the performance required.
CONSTRUCTIONAL FEATURES OF THE MOTOR
Rotor mounted on oversized greased-for-life ball bearings. Incorporated thermo-amperometric protection and permanently inserted capacitor in the
single phase version. It is recommended to use remote overload protection for three phase motors, in compliance with current legislation. Manufactured
