Centrifugal pump AQUAJET series

waterelectricself-priming

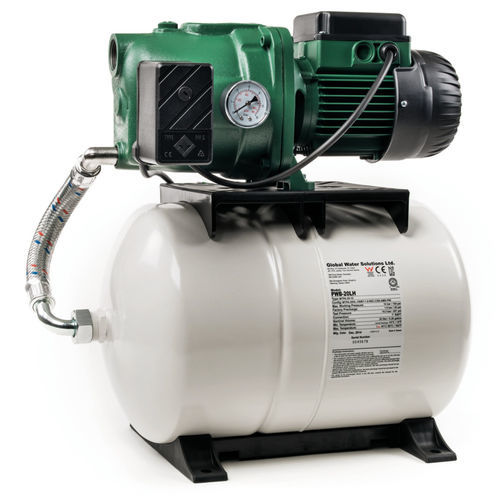

Booster set composed of a expansion vessel of 20 litres, pressure switch for automatic operation, pressure gauge, self-priming electropump complete with power cable and plug, all assembled and ready for installation. APPLICATIONS Automatic booster sets, especially suitable for domestic use, small civil, farming or industrial installations, washing plants and leisure activities. These feature JET self-priming electric pumps, which work even in the presence of air bubbles and small sandy impurities in the water. The assembly comprises a 20 litre capacity mebrane tank, pressure switch for automatic operation, pressure gauge, JET electric pump with power cord with plug, fittings kit between the pump and the tank, all fully assembled and ready for installation. CONSTRUCTIONAL FEATURES OF THE PUMP Pump body and motor support in die cast aluminium. Impeller, diffuser, venturi tube and sand guard in technopolymer Stainless steel wear ring. Carbon/ceramic mechanical seal. CONSTRUCTIONAL FEATURES OF THE MOTOR Asynchronous type, closed, with external air cooling. Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life. Incorporated thermo-amperometric protection and permanently inserted capacitor. Manufactured pursuant to CEI 2-3 / CEI 61-69 (EN 60335-2-41)
