Sewage pump FEKA VS
vortexfor wastewaterelectric

Sewage pump - FEKA VS - DAB - vortex / for wastewater / electric
Sewage pump - FEKA VS - DAB - vortex / for wastewater / electric
Sewage pump - FEKA VS - DAB - vortex / for wastewater / electric - image - 2
Sewage pump - FEKA VS - DAB - vortex / for wastewater / electric - image - 3
Sewage pump - FEKA VS - DAB - vortex / for wastewater / electric - image - 4
Sewage pump - FEKA VS - DAB - vortex / for wastewater / electric - image - 5
Sewage pump - FEKA VS - DAB - vortex / for wastewater / electric - image - 6
Add to favorites
Compare this product

Characteristics

Technology
vortex
Fluid
for wastewater
Operation
electric
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
sewage, lifting
Material
stainless steel
Protection level
IP68
Flow

Max.: 39 m³/s
(1,377.272 ft³/s)

Min.: 3 m³/s
(105.944 ft³/s)

Head

Max.: 17 m
(55'09" )

Min.: 0 m
(0'00" )

Power

0.5 kW, 0.75 kW, 1 kW
(0.68 hp, 1.02 hp, 1.36 hp)

Length

244 mm
(10 in)

Width

244 mm
(9.61 in)

Height

442 mm
(17.4 in)

Weight

23 kg, 24 kg, 26 kg
(50.71 lb, 52.91 lb, 57.32 lb)

Description

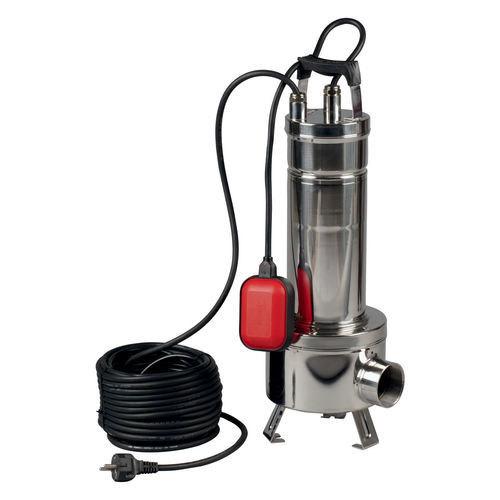

Feka VS by DAB are submersible pumps made entirely in stainless steel, ideal for lifting sewage water in residential building service and commercial building service. Microcast stainless steel vortex impeller in back-flowing position to prevents pump clogging, it can handle solid matter up to 50 mm. High reliability guaranteed by the double mechanical seal in silicon carbide in oil bath. Feka VS is suitable for fixed or mobile installations and is available in the automatic version with integrated float switch or in the manual version without the float. Continuous duty asynchronous submersible motor, rotor mounted on oversized ball bearings. Thermal protection incorporated in all single-phase versions. 10 meter cable included. Feka VS is certified for lifting of waste water according to the EN 12050-2 standard. All versions have a handle.
