Centrifugal pump EVOPLUS series

waterelectricmobile

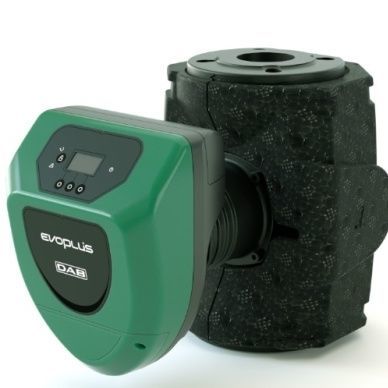

The new design of the Evoplus range reflects its high manufacturing standards: the improved insulation between the motor and the electronics prevents condensation even better, and the cataphoresis treatment is thought for maximum resistance to oxidation. It's even easier to use thanks to its all-new user interface. DAB Evoplus is a wet rotor electronic circulator designed for the circulation of water in conditioning and heating systems in commercial building service. The integrated variable frequency drive ensures greater comfort and protection against water hammer action and also saves energy by adapting the motor speed to the actual requirements. The display enables easy configuration and the setting of the six operating modes. Evoplus is supplied with flanged suction and delivery ports (also in the twin version). The single version includes insulation shells. The Evoplus D versions (with two identical circulators on the same pump body) is supplied as standard with an automatic non-return suction valve incorporated in the delivery port to avoid water recirculating through the unit when it is not running. There is also a blank flange for servicing either of the two motors. Possibility of remote control with the DConnect service (DConnect Box supplied separately).
