Impeller pump VS serieswateroilelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water, oil
- Operation
- electric
- Priming
- normal priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- circulation
- Material
- bronze
- Flow
Max.: 3.7 m³/h
(130.66427 ft³/h)Min.: 0.6 m³/h
(21.1888 ft³/h)- Pressure
Max.: 10 bar
(145.038 psi)Min.: 0 bar
(0 psi)- Fluid temperature
Max.: 85 °C
(185 °F)Min.: -10 °C
(14 °F)- Length
150 mm
(6 in)- Width
104 mm
(4.09 in)- Height
124 mm
(4.88 in)
Description

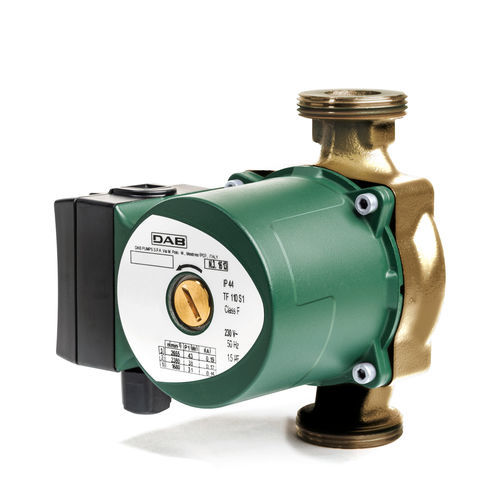

VS by DAB is a wet rotor circulator with bronze pump body designed for the circulation of drinkable hot water in domestic and residential systems. The motor shaft can be deblock manually. VS has a vent plug, an asynchronous motor with overload protection and threaded suction and delivery ports.
Liquid temperature range: from -10 °C to +85 °C for sanitary uses, and +110 °C for other uses. To avoid the formation of calcium, do not exceed 65 °C, and include a calcium removal system when the hardness of the water exceeds 15 French degrees.
