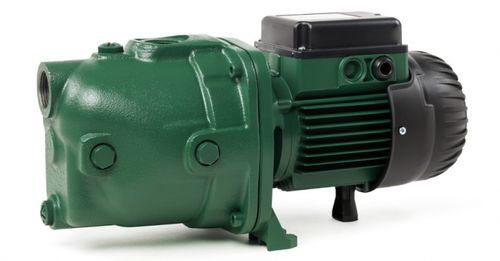

Centrifugal pump Jet series

waterelectricself-priming

Centrifugal self-priming pump complete of ejector and diffuser for high priming capability. Suitable for sucking from well up to 9 meter, provided in 3 different material pump body: cast-iron, stainless steel and technopolymer. Jet Inox is ACS certified. APPLICATIONS Self priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Suitable for pumping water with low levels of sandy impurities. Especially used in domestic water supply installations. Suitable for small farms and gardening, small scale industrial services and where self priming is necessary. CONSTRUCTIONAL FEATURES OF THE PUMP Cast-iron motor support and pump body. Motor support in die cast aluminium. Impeller, diffuser, venturi tube and sand guard in technopolymer Stainless steel wear ring. Carbon/ceramic mechanical seal. CONSTRUCTIONAL FEATURES OF THE MOTOR Asynchronous type, closed, with external air cooling. Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life. Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version. It is recommended to use overload protection for three phase motor protection, in compliance with current legislation. Manufactured pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41)
