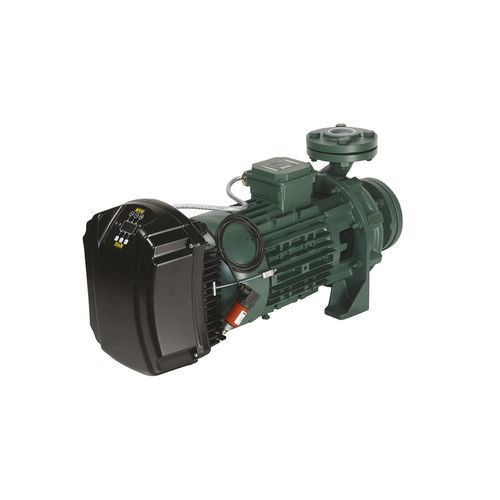

Electronic pump KE seriescentrifugalwaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- normal priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- irrigation, mixing
- Material
- cast iron
- Voltage
- 400 V, 230 V
- Protection level
- IP55
- Other characteristics
- horizontal mount, electronic, vertical
- Flow
Max.: 100 m³/h
(3,531.46667 ft³/h)Min.: 6 m³/h
(211.888 ft³/h)- Head
Max.: 60 m
(196'10" )Min.: 0 m
(0'00" )- Power
3 kW, 5.5 kW, 11 kW
(4.08 hp, 7.48 hp, 14.96 hp)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Length
600 mm, 700 mm, 850 mm
(24 in, 28 in, 33 in)- Width
300 mm, 350 mm
(11.81 in, 13.78 in)- Height
350 mm, 400 mm
(13.78 in, 15.75 in)- Weight
52 kg, 78 kg, 120 kg
(114.64 lb, 171.96 lb, 264.55 lb)
Description
Single-impeller centrifugal pump suitable for domestic, civil, industrial and agricultural systems, and for decanting, mixing and irrigation uses.
Maximum operating pressure: KE 36/200, KE 40/200, KE 55/200:8 bar (800 kPa), KE 40/400, KE 50/400, KE 30/800, KE 40/800, KE 50/800, KE 20/1200, KE 25/1200, KE 35/1200: 10 bar (1000 kPa)
Installation: normally in horizontal or vertical position, provided that the motor is always above the pump.
APPLICATIONS
Single-impeller centrifugal pump suitable for domestic, civil, industrial and agricultural systems, and for decanting, mixing and irrigation uses.
CONSTRUCTION FEATURES OF THE PUMP
Pump body and motor support in cast iron.
Technopolymer or cast iron impeller, as per the TECHNICAL DATA table.
Carbon/ceramic mechanical seal.
CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling.
Rotor running on ball bearings, oversized to ensure low noise and durability.
Construction according to CEI 2-3.
Controlled by MCE inverter.
