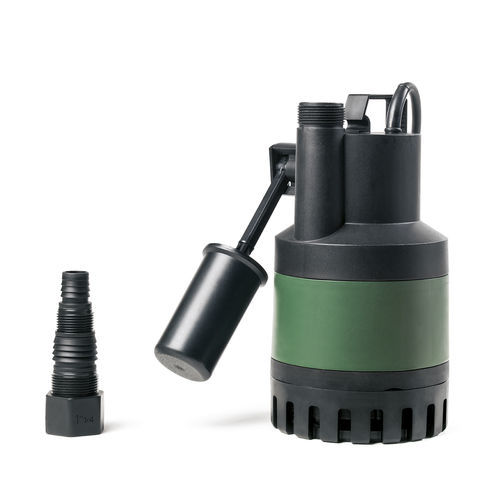

Impeller pump Nova UP seriesfor wastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- suction, drain, drainage
- Material
- cast iron
- Protection level
- IP68
- Other characteristics
- automatic, vertical, with filter
- Flow
Max.: 15 m³/h
(529.72 ft³/h)Min.: 1 m³/h
(35.31467 ft³/h)- Head
Max.: 10 m
(32'09" )Min.: 0 m
(0'00" )- Power
Max.: 0.77 kW
(1.05 hp)Min.: 0.21 kW
(0.29 hp)- Fluid temperature
Max.: 35 °C
(95 °F)Min.: 0 °C
(32 °F)
Description
Vertical flow drainage pump in an automatic or manual version, with removable filter for suction up to 2/3 mm,
features that make it a strong pump and guarantee installation versatility. These pumps can be used with liquids that
contain solids of a maximum size up to 10 mm. Pump body, impeller, cap and grille in technopolymer.
The motor, rotor shaft and screws are in stainless steel. Triple O-ring seal with interposed oil chamber. Asynchronous
submersible motor for continuous operation. Stator in a sealed stainless steel enclosure. Rotor mounted on ball
bearings greased for life and oversized. Thermal-amperometers protection incorporated and condenser permanently
connected
