analog input module / Modbus RTU / RS-485 / RS-232
DAT3015-V

Add to MyDirectIndustry favorites
Compare this product
analog input module / Modbus RTU / RS-485 / RS-232 analog input module / Modbus RTU / RS-485 / RS-232 - DAT3015-V
{{requestButtons}}

Characteristics

  • Signal type:

    analog

  • Bus:

    Modbus RTU, RS-485, RS-232

  • Type:

    safety

  • Applications:

    voltage

  • Number of inputs/outputs:

    4-I

Description

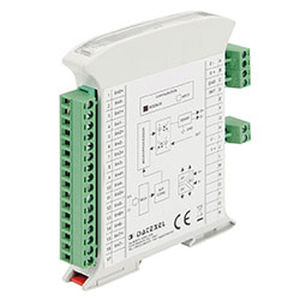

The device DAT 3015V is able to acquire on input up to 4 analog voltage signals. Data values are transmitted with MODBUS RTU/ ASCII protocol on the RS-485 network (RS-232 interface is available). It is possible to connect up to ± 10V voltage signals. By means of a 16 bit converter, the device guarantees high accuracy and a stable measure versus time and temperature. To ensure the plant safety, two Watch-Dog timer alarms are provided. The 2000 Vac isolation between input, power supply and serial line RS-485 (or RS-232) removes eventual ground-loop effects, allowing the use of the device even in the heavy environmental conditions.
