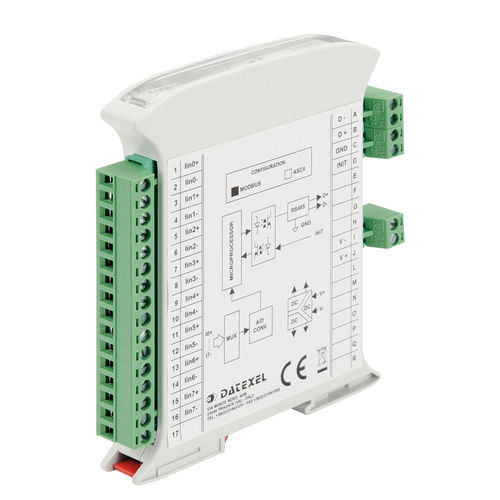

Analog input module DAT3017-I

Modbus RTURS-485RS-232

The DAT 3017I device is able to acquire on input up to 8 analog current signals. Data values are transmitted with MODBUS RTU/ASCII protocol on the RS-485 network (RS-232 interface is available). It is possible to connect up to ± 20mA voltage signals. By means of a 16 bit converter, the device guarantees a high accuracy and a stable measure versus time and temperature. To ensure the plant safety, two Watch-Dog timer alarms are provided. The 2000 Vac isolation between input, power supply and serial line removes eventual ground-loop effects, allowing the use of the device even in the heavy environmental conditions. The DAT 3017I is in compliance with the Directive 2004/108/EC on the electromagnetic compatibility. The device is housed in a rough self-extinguishing plastic container which, thanks to its thin profile of 17.5mm only, allows a high density mounting on EN-50022 standard DIN rail.
